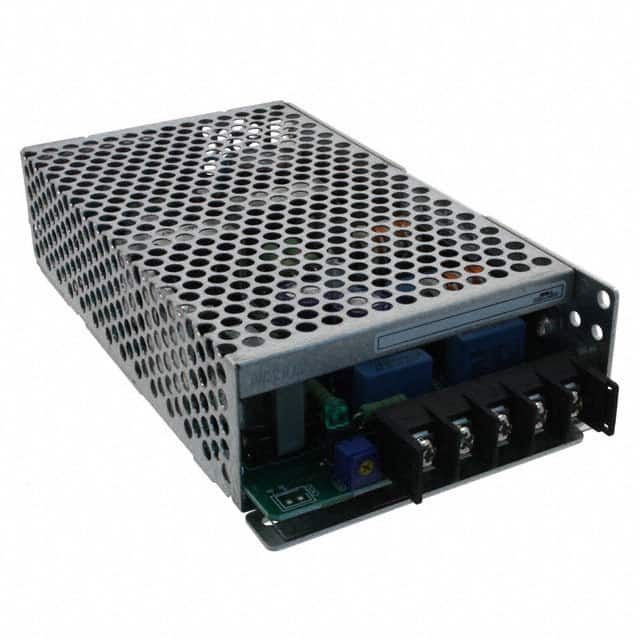

The TDK Corporation JWS50-12/A is an enclosed AC/DC power supply designed for industrial applications. It provides a 12V DC output at up to 4.3A, delivering a total of 50W of power.
This converter features a universal input voltage range of 85-265 VAC, making it suitable for global use. It includes Power Factor Correction (PFC) and meets EN61000-3-2 standards. The operating temperature range is -10°C to 60°C with derating applied above 50°C.
Designed for chassis mounting, the JWS50-12/A has dimensions of 158.8mm x 85.1mm x 36.8mm. Key features include overcurrent and overvoltage protection, a typical hold-up time of 20ms, and an efficiency of 76%. Safety approvals include CE marking.
The JWS50-12/A provides a 12V DC output voltage at a maximum current of 4.3A.
The JWS50-12/A has a power rating of 50W.
The JWS50-12/A accepts a universal input voltage range of 85-265 VAC.
The operating temperature range for the JWS50-12/A is -10°C to 60°C, with derating applied above 50°C.
The JWS50-12/A is designed for chassis mounting.
Yes, the JWS50-12/A features overcurrent protection set at greater than 105% of its rating.
The JWS50-12/A has CE Mark approval.
