| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

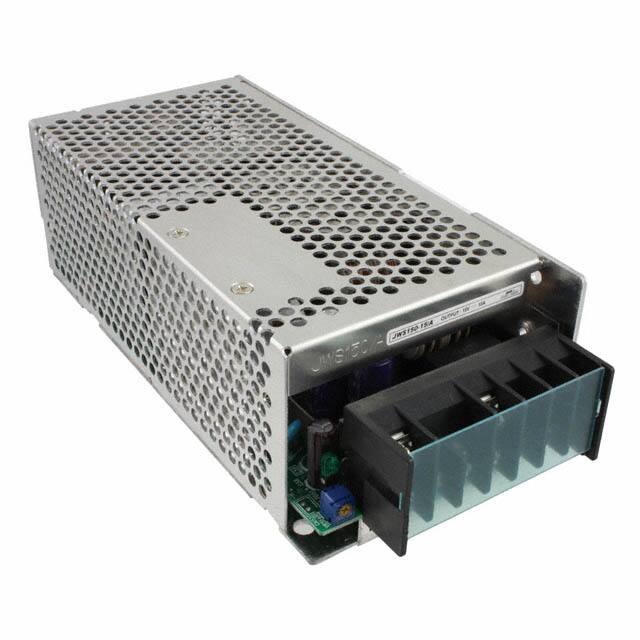

The TDK Corporation JWS150-15/A is an enclosed AC/DC power supply from the JWS Series, delivering 150W of power with a single 15VDC output at 10A. It operates with a universal input voltage range of 85-265 VAC and includes features such as power factor correction (PFC), remote sense capability, and adjustable output. The unit is designed for chassis mounting and has an efficiency rating of 78%.
This power supply is approved by CE and built to meet VDE0160 machinery directive standards, making it suitable for ITE (Commercial) applications. It operates within a temperature range of -10°C to 60°C with derating. The dimensions are 198.1mm in length, 91.9mm in width, and 65.0mm in height.
Key electrical specifications include a withstand voltage of 3kVAC (Input to Output) and 2kVAC (Input to Ground), and isolation resistance greater than 100MΩ. It also meets EN61000-3-2 for power factor and EN55011/EN55022-B for conducted and radiated EMI.
85-265 VAC (47-63Hz) or 120-330 VDC.
15 VDC at 10 A (150W).
-10°C to 60°C with derating above 50°C (open frame) or -10°C to 50°C with cover.
Enclosed chassis mount.
UL60950-1, CSA C22.2 No. 60950-1, EN60950-1, VDE0160, CE Mark.
Yes.
78%.
