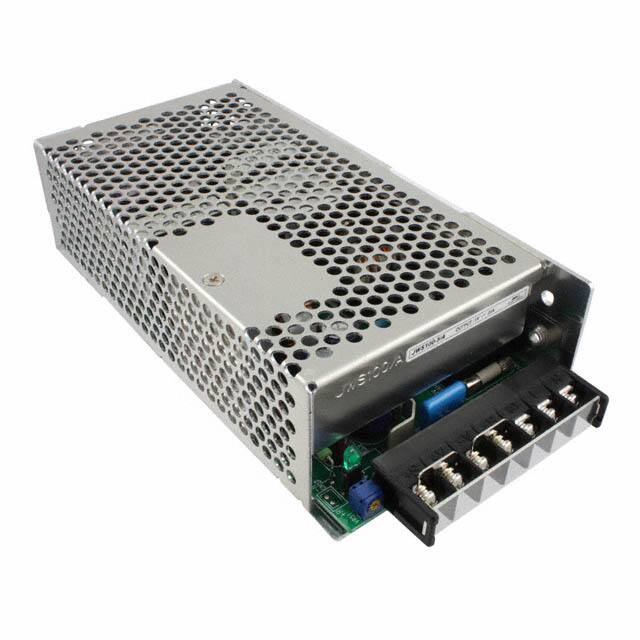

JWS100-15/A The TDK Corporation JWS100-15/A is an enclosed AC/DC converter with a 15V output and 100W power rating. It features universal input from 85-265 VAC and a chassis mount design.
Mfr Part #:

JWS100-15/A

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation JWS100-15/A is an enclosed AC/DC converter with a 15V output and 100W power rating. It features universal input from 85-265 VAC and a chassis mount design.
Stock on Request

JWS100-15/A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Input Voltage
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Output Voltage
Power (Watts)
Temperature Coefficient
Type
Voltage
Width
View Similar Products (0)

JWS100-15/A Description

Short technical summary and product information.

The TDK Corporation JWS100-15/A is a versatile AC/DC converter designed for industrial applications. It provides a single 15V output at 7A, delivering a total of 100W of power.



This enclosed unit features a universal input voltage range of 85-265 VAC, making it suitable for global use. Key electrical specifications include 77% efficiency, power factor correction meeting EN61000-3-2 standards, and a hold-up time of 20ms. It also offers overcurrent and overvoltage protection for enhanced reliability.



The JWS100-15/A is designed for chassis mounting and has dimensions of 188.0mm x 91.9mm x 50.0mm. Its operating temperature range is -10°C to 60°C with derating. Additional features include remote sense capability and a 5-year warranty, making it a robust solution for ITE (Commercial) applications.

JWS100-15/A Quick Information

Product Type: AC DC Converter
Series: JWS (100W)
Canonical Name: TDK Corporation JWS100-15/A AC/DC Converter
Subcategory: AC DC Converters

JWS100-15/A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JWS100-15/A Features

  • 100W enclosed AC/DC converter
  • 15V output at 7A
  • Universal input voltage range
  • Chassis mount design
  • 5-year warranty

JWS100-15/A Applications

  • Suitable for ITE (commercial) equipment power.
  • Ideal for industrial control system power supplies.
  • Used in test and measurement instrumentation.
  • Powers telecommunications and networking gear.

JWS100-15/A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the JWS100-15/A?

85-265VAC (47-63Hz) or 120-330VDC.

What output voltage and current does the JWS100-15/A provide?

15V at 7A, 100W.

What is the operating temperature range?

-10°C to 60°C with derating.

What is the efficiency of the JWS100-15/A?

77%.

What protection features does the JWS100-15/A include?

Overcurrent protection (>105%) and overvoltage protection.

What is the isolation voltage?

3kV (input to output).

What is the physical size of the JWS100-15/A?

188.0mm x 91.9mm x 50.0mm (7.40" x 3.62" x 1.97").
