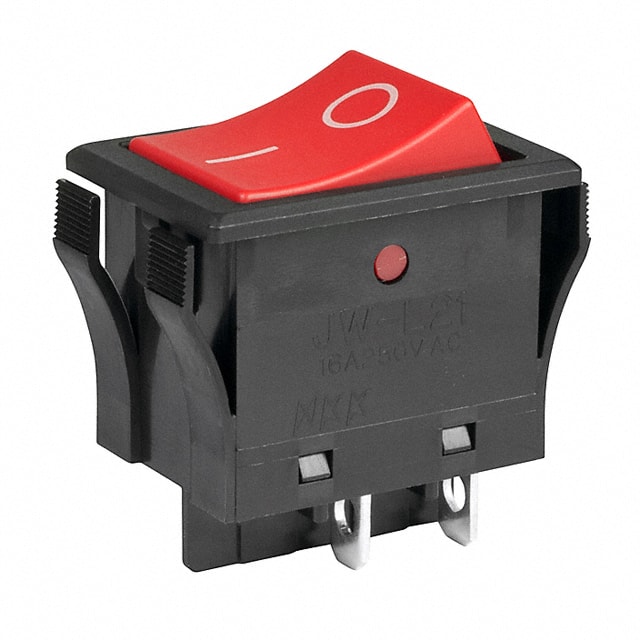

JWL21RC2A/UCV The NKK Switches JWL21RC2A/UCV is a DPST rocker switch rated for 16A at 125V. It features a red actuator and epoxy sealed terminals.
Mfr Part #:

JWL21RC2A/UCV

Available from 1 distributors
Mfr Name: NKK Switches
NKK Switches
The NKK Switches JWL21RC2A/UCV is a DPST rocker switch rated for 16A at 125V. It features a red actuator and epoxy sealed terminals.
✓ Total Stock: 525 pcs
$ Price Range: $0.75

JWL21RC2A/UCV Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
525 pcs
On Request
525 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JWL21RC2A/UCV Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Marking
Actuator Type
Circuit
Color
Current Rating (Amps)
Features
Ingress Protection
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

JWL21RC2A/UCV Description

Short technical summary and product information.

This NKK Switches JWL21RC2A/UCV is a double pole, single throw (DPST) rocker switch designed for panel mounting with a snap-in mechanism. It offers a robust 16A current rating at 125V AC and features a red, concave actuator with 'O -' marking.



The switch is suitable for applications requiring a simple on-off function. Termination is achieved via solder or 0.187" (4.7mm) quick connect terminals. The panel cutout required is rectangular, measuring 29.50mm x 20.50mm. It operates within a temperature range of -25°C to 70°C and provides dust-proof ingress protection.



Epoxy sealed terminals enhance durability and reliability in various environments. This component is compliant with RoHS3 standards and has an MSL of 1.

JWL21RC2A/UCV Quick Information

Product Type: Rocker Switch
Canonical Name: NKK Switches JWL21RC2A/UCV Rocker Switch
Subcategory: Rocker

JWL21RC2A/UCV Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JWL21RC2A/UCV Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

JWL21RC2A/UCV Features

  • DPST rocker switch rated for 16A 125V.
  • Panel mount with snap-in installation.
  • Solder and 0.187" quick connect terminals.
  • Red concave actuator with 'O -' marking.
  • Dust proof with epoxy sealed terminals.

JWL21RC2A/UCV Applications

  • Ideal for general purpose on-off switching.
  • Suitable for industrial control panels.
  • Used in equipment requiring robust switches.
  • Applications needing dust protection.

JWL21RC2A/UCV FAQs

5 frequently asked questions generated from this part’s specifications.
What is the voltage and current rating for the JWL21RC2A/UCV?

The JWL21RC2A/UCV has a voltage rating of 125V and a current rating of 16A.

How is the JWL21RC2A/UCV switch mounted?

The JWL21RC2A/UCV is designed for panel mounting and features a snap-in mechanism.

What are the termination options for this rocker switch?

This switch offers solder and 0.187" (4.7mm) quick connect termination styles.

What is the operating temperature range for the JWL21RC2A/UCV?

The operating temperature range for this switch is -25°C to 70°C.

What is the circuit type of the JWL21RC2A/UCV?

The JWL21RC2A/UCV is a DPST (Double Pole, Single Throw) circuit type.
