| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Type | |
| Voltage |

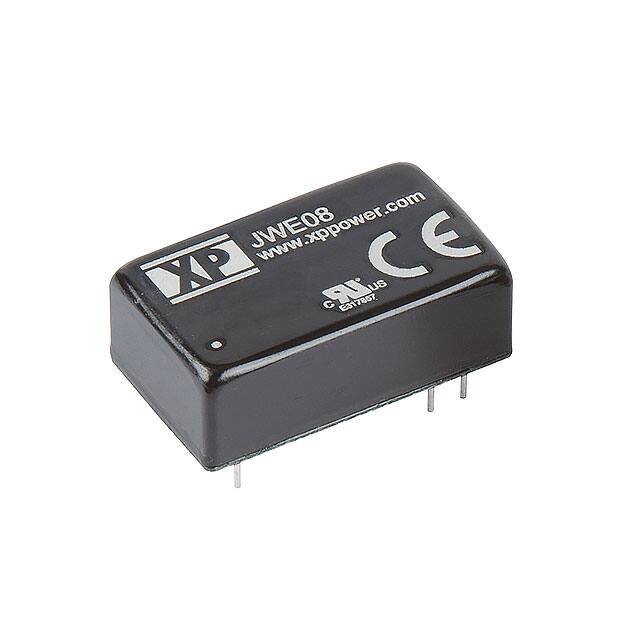

The JWE0848S15 is a regulated single-output DC-DC converter from XP Power's JWE08 series. It delivers 15V at 535mA with 8W output power from an ultra-wide 4:1 input voltage range of 18 to 75VDC (48V nominal). The converter achieves 85% typical efficiency at full load and provides 1500VDC input-to-output isolation (1800VDC for 1 second).
Key electrical specifications include ±2% output voltage accuracy, ±0.2% typical line regulation, ±0.5% typical load regulation, and 55mV pk-pk ripple and noise. Protection features include overcurrent protection at 150% of rated load and continuous short circuit hiccup mode with auto recovery. No minimum load is required for operation.
The converter is housed in a metal 16-DIP module with 6 leads and through-hole mounting. Dimensions are 23.8 x 13.7 x 8.0 mm. It operates over a temperature range of -40°C to +105°C, with full power available up to +70°C. The device is designed for ITE (Commercial) applications and complies with safety standard 62368-1.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.32 | $30.32 |
| 5+ | $29.41 | $29.41 |
| 10+ | $28.95 | $28.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 VDC.
18 to 75 VDC (48V nominal).
-40°C to +105°C, with full power up to +70°C.
16-DIP Module, 6 Leads (through-hole).
Yes, RoHS3 Compliant (unverified).
1500 VDC for 60 seconds, 1800 VDC for 1 second.
Overcurrent protection at 150% and short circuit protection with hiccup mode auto recovery.
