| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Overload Protection | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage |

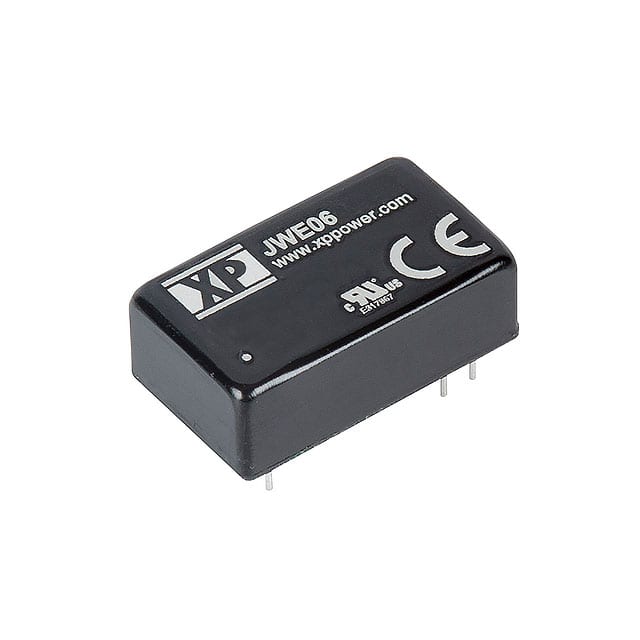

The JWE0624S12 is a 6W isolated DC-DC converter from XP Power's JWE06 series. It offers a single regulated 12V output capable of delivering 500mA of current. The converter operates from a wide 4:1 input voltage range of 9V to 36V, with a nominal input of 24V. Typical efficiency is 86% at full load.
This converter features 1500VDC input-to-output isolation, making it suitable for applications requiring galvanic isolation. It includes overcurrent and short circuit protection (hiccup mode). The output voltage accuracy is ±2% at full load, with line regulation of ±0.2% typical and load regulation of ±0.5% typical. Ripple and noise is 55mV pk-pk typical.
The JWE0624S12 is housed in a compact 16-DIP module with through-hole mounting, measuring 23.8 x 13.7 x 8.0mm. It operates over a temperature range of -40°C to +105°C, with derating above +75°C. The converter is designed for ITE (commercial) applications and has a 3-year warranty. It is RoHS3 compliant (unverified) and has MSL Level 1.
| Qty | Low | High |
|---|---|---|
| 2+ | $39.99 | $39.99 |
| 10+ | $26.33 | $26.33 |
| 40+ | $36.85 | $36.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The JWE0624S12 provides a regulated 12V output at 500mA.
The input voltage range is 9V to 36V, with a nominal 24V.
The converter operates from -40°C to +105°C, with derating above +75°C.
It is a 16-DIP module with through-hole mounting, measuring 23.8 x 13.7 x 8.0mm.
RoHS3 compliant according to existing data, but this status is unverified.
Overcurrent protection (OCP) and short circuit protection (SCP) in hiccup mode.
