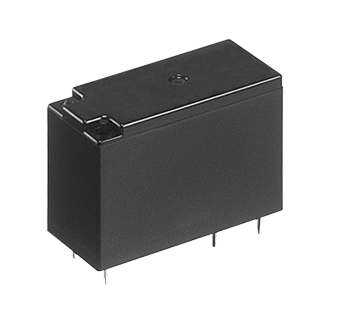

This Panasonic JW2AHN-DC12V is a general purpose relay designed for various applications requiring reliable switching. It features a DPST-NO (2 Form A) contact configuration with a contact rating of 5A.
The relay operates on a 12VDC coil voltage and requires a must-operate voltage of 8.4 VDC, with a must-release voltage of 1.2 VDC. The coil current is 44 mA. It offers an operate time of 15 ms and a release time of 5 ms.
Designed for through-hole mounting with a PC pin termination style, this relay is sealed for flux protection. It operates within a temperature range of -40°C to 60°C and has a switching voltage capability of up to 250VAC or 30VDC.
The JW2AHN-DC12V has a coil insulation rating of Class E. Its RoHS 3 compliance and MSL 1 rating indicate suitability for a wide range of electronic manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 12 VDC.
The contact rating is 5 A.
It has a DPST-NO (2 Form A) contact form.
The operating temperature range is -40°C to 60°C.
It is mounted using the through-hole method.
