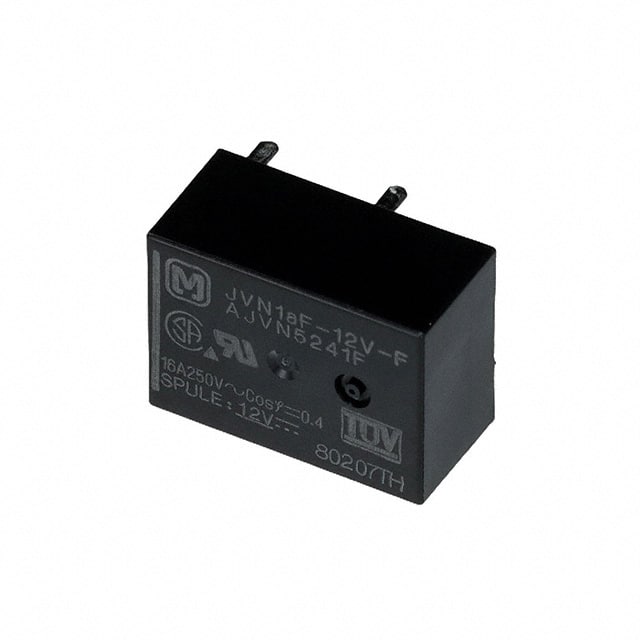

The Panasonic JVN1AF-12V-F is a general purpose relay designed for various applications. It operates with a 12VDC coil voltage and has a non-latching coil type. The relay features a SPST-NO (1 Form A) contact configuration, capable of switching up to 16A at 277VAC or 30VDC.
Key electrical characteristics include a must-operate voltage of 9VDC and a must-release voltage of 0.6VDC. The operate time is 12ms, and the release time is 5ms. The contact material is Silver Tin Oxide (AgSnO), and the seal rating is sealed for flux protection.
This relay is designed for through-hole mounting with a PC pin termination style. It operates within a temperature range of -40°C to 70°C. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 12 VDC.
The contact current rating is 16 A.
The contact form is SPST-NO (1 Form A).
The switching voltage is 277 VAC and 30 VDC.
The operating temperature range is -40°C to 70°C.
It is a through-hole mounting type.
