| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| Housing Material | |
| Insertion Loss | |
| Isolation Voltage | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Solder Area Finish | |
| Tab Direction | |
| Termination | |
| Termination Style | |
| Turns Ratio (@ Receive) | |
| Turns Ratio (@ Transmit) |

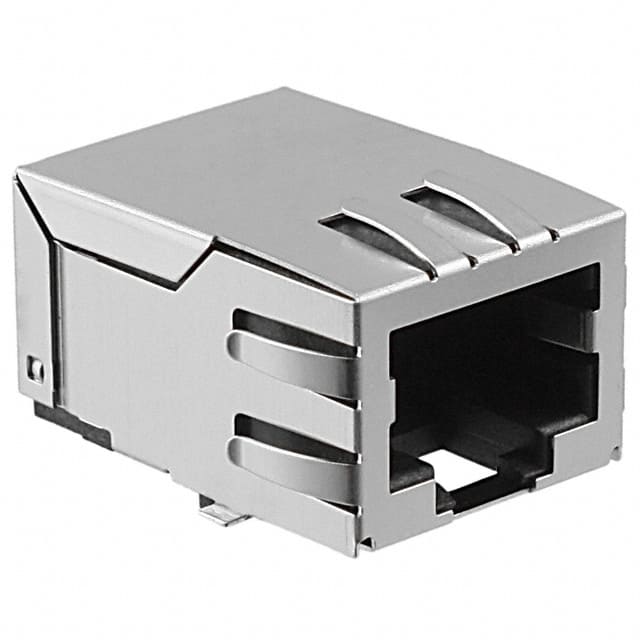

The JV011I21NLT is a single port (1x1) RJ45 modular jack with integrated magnetics from Pulse Electronics, designed for 10/100 Base-TX Fast Ethernet applications. This surface mount connector includes a shielded housing with EMI finger for enhanced electromagnetic interference suppression. The tab is oriented down and the connector is angled 90° (right angle) for space-constrained PCB designs.
Electrical performance includes a turns ratio of 1CT:1 for both transmit and receive channels, maximum insertion loss of -1.0 dB, and minimum isolation voltage of 1500 Vrms per IEEE 802.3 requirements. The connector supports AutoMDIX and is rated for operation from 0°C to 70°C.
Packaging is surface mount with solder termination. The housing is made of high-temperature thermoplastic rated UL94 V-0. Contact material is phosphor bronze with gold finish. The part includes a board guide for alignment. Tape and reel packaging is indicated by the 'T' suffix in the part number.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.54 | $8.54 |
| 10+ | $7.26 | $7.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Surface Mount (SMD).
0°C to 70°C.
1500 Vrms minimum.
Yes, RoHS compliant per datasheet and RoHS3 compliant per database.
10/100 Base-TX with AutoMDIX.
1CT:1 for both transmit and receive.
