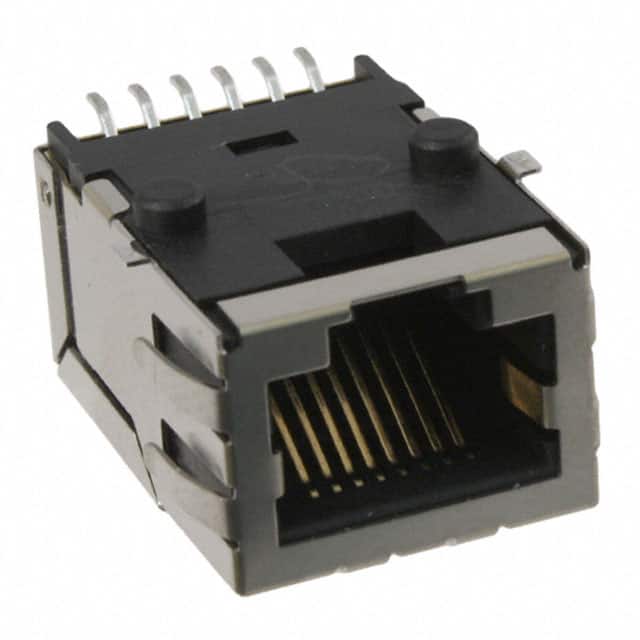

The Pulse Electronics JV011I21NL is a single-port RJ45 connector with integrated magnetics, designed for 100 Base-TX Fast Ethernet applications. It is part of the PulseJack JV series and offers a 1CT:1 turns ratio for both transmit and receive channels.
Electrical specifications include a minimum isolation voltage of 1500 Vrms, maximum insertion loss of -1.0 dB from 1-65 MHz, and return loss of -20 dB minimum at 1-10 MHz. Crosstalk is rated at -40 dB minimum from 1-10 MHz, and common mode rejection is -30 dB minimum from 1-50 MHz.
The connector is surface mount with a 90° right-angle orientation and tab-down configuration. It is shielded with an EMI finger and has a height above board of 12.88 mm. The housing is made of high-temperature thermoplastic rated UL 94 V-0, and contacts are phosphor bronze with gold finish.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.54 | $8.54 |
| 10+ | $7.26 | $7.26 |
| 45+ | $6.53 | $6.53 |
| 90+ | $6.22 | $6.22 |
| 135+ | $6.04 | $6.04 |
| 270+ | $5.75 | $5.75 |
| 540+ | $5.48 | $5.48 |
| 1,035+ | $5.23 | $5.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The turns ratio is 1CT:1 for both transmit and receive channels.
The minimum isolation voltage is 1500 Vrms at 60 Hz for 1 minute.
The operating temperature range is 0°C to 70°C.
The mounting type is surface mount with solder termination.
Yes, the datasheet states it is RoHS compliant.
