| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

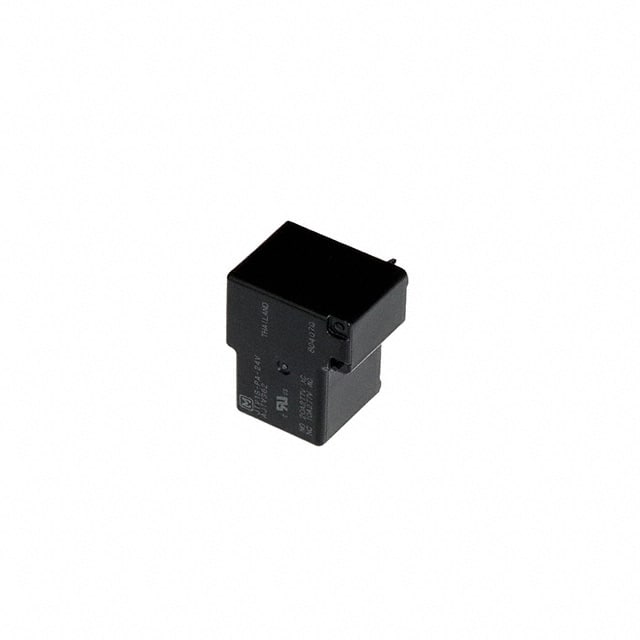

This Panasonic Electronic Components JTV1S-PA-24V is a general purpose relay designed for robust applications. It offers a contact rating of 20A and operates with a 24VDC coil.
The relay features a SPST-NO (1 Form A) contact configuration, utilizing Silver Tin Oxide (AgSnO) for reliable contact material. It has an operate time of 15 ms and a release time of 10 ms, with a must-operate voltage of 18 VDC and a must-release voltage of 2.4 VDC.
Designed for through-hole mounting with a PC pin termination style, this relay is suitable for various circuit board applications. It operates within a temperature range of -55°C to 85°C and is fully sealed for protection.
Key electrical specifications include a switching voltage of up to 277VAC and a coil current of 41.7 mA. The non-latching coil type ensures straightforward operation.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 24 VDC.
The contact current rating is 20 A.
The operating temperature range is -55°C to 85°C.
It has a SPST-NO (1 Form A) contact form.
It is mounted using the Through Hole method.
