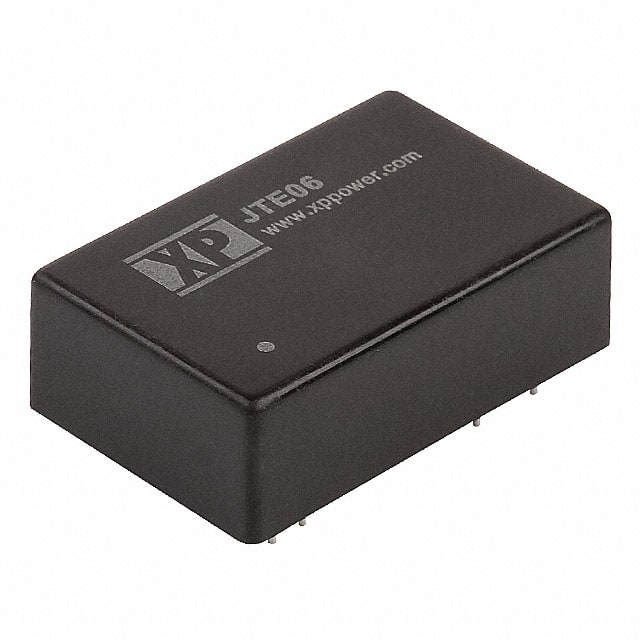

JTE0624D12 XP Power JTE0624D12 is a 6W DC-DC converter with dual ±12V outputs (250mA each), 9-36V input range, and 1500VDC isolation in a DIP-24 through-hole package.
Mfr Part #:

JTE0624D12

Available from 1 distributors
Mfr Name: XP Power
XP Power
XP Power JTE0624D12 is a 6W DC-DC converter with dual ±12V outputs (250mA each), 9-36V input range, and 1500VDC isolation in a DIP-24 through-hole package.
✓ Total Stock: 5 pcs
$ Price Range: $17.44 - $20.76

JTE0624D12 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JTE0624D12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Overload Protection
Power (Watts)
Standard Number
Storage Temperature
Temperature Coefficient
Type
Voltage
Width
View Similar Products (0)

JTE0624D12 Description

Short technical summary and product information.

The JTE0624D12 is a 6W isolated DC-DC converter from XP Power's JTE series. It accepts a wide 9-36V DC input and provides two regulated outputs: +12V at 250mA and -12V at 250mA. Typical efficiency is 84% with a switching frequency of 330kHz. Line regulation is ±0.5% max and load regulation is ±5% max for dual output models. Ripple and noise is 100mV pk-pk (20MHz bandwidth).



Protection features include overload protection (135%-185% of full load) and hiccup-mode short circuit protection with auto recovery. Under voltage lockout is set at 8.5V on / 8.0V off for 24V input models. The converter operates from -40°C to +100°C with derating above +60°C, and requires no minimum load.



Package is a 24-DIP module with 8 leads, through-hole mounting, dimensions 31.8mm x 20.3mm x 10.4mm. Safety approvals include UL62368-1, CSA, CE, UKCA. EMC compliance meets EN55032 Class A conducted emissions and immunity standards EN61000-4-2/-3/-4/-5/-6/-8.

JTE0624D12 Quick Information

Product Type: DC DC Converter
Series: JTE
Canonical Name: XP Power JTE0624D12 DC DC Converter, Dual Output ±12V, 6W, DIP-24
Subcategory: Isolated Dual Output DC DC Converter

JTE0624D12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JTE0624D12 Estimated Pricing

Qty Low High
1+ $20.76 $20.76
5+ $20.14 $20.14
10+ $19.51 $19.51
25+ $18.68 $18.68
100+ $17.44 $17.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

JTE0624D12 Features

  • Dual regulated ±12V outputs at 250mA each.
  • Wide 9-36V DC input voltage range.
  • 1500VDC input-to-output isolation.
  • Hiccup mode short circuit and overload protection.
  • Operates from -40°C to +100°C.

JTE0624D12 Applications

  • Ideal for industrial and commercial ITE applications.
  • Suitable for distributed power architectures.
  • Powers dual-supply analog circuits and operational amplifiers.
  • Use in battery-powered equipment with wide input range.

JTE0624D12 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

9V to 36V DC.

What are the output voltages and currents?

+12V at 250mA and -12V at 250mA.

What is the efficiency?

84% typical.

What is the isolation voltage?

1500VDC input-to-output.

What is the operating temperature range?

-40°C to +100°C.

What is the package type?

24-DIP Module, 8 Leads, Through Hole mounting.

Is the JTE0624D12 RoHS compliant?

RoHS3 compliant (unverified, low confidence).
