JTD1548D05

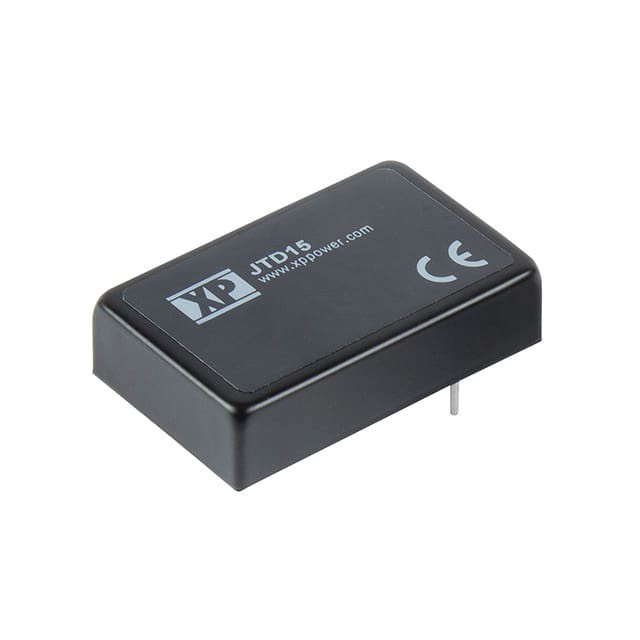

The JTD1548D05 is a 15W isolated DC-DC converter from the JTD15 series by XP Power. It delivers dual outputs of ±5V at ±1.5A each, with a nominal power of 15W. The converter operates over a wide 4:1 input voltage range of 18V to 75V, making it suitable for a variety of industrial and telecom applications. With an isolation voltage of 3000VDC, it ensures robust safety and noise isolation. The device features remote on/off control, overcurrent protection (OCP), overvoltage protection (OVP), and short-circuit protection (SCP). Efficiency is typically 88% at nominal input. The package is a 6-DIP through-hole module measuring 40.6mm x 25.4mm x 10.4mm. Operating temperature range is -40°C to +100°C with derating. Line regulation is ±0.5% and load regulation is ±1.0%, with ripple and noise of 60mV pk-pk. Ideal for powering analog circuits requiring symmetric supplies, such as op-amp rails, data acquisition systems, and industrial sensors. The through-hole mounting simplifies prototyping and production assembly. The metal case provides effective thermal management and EMI shielding.
