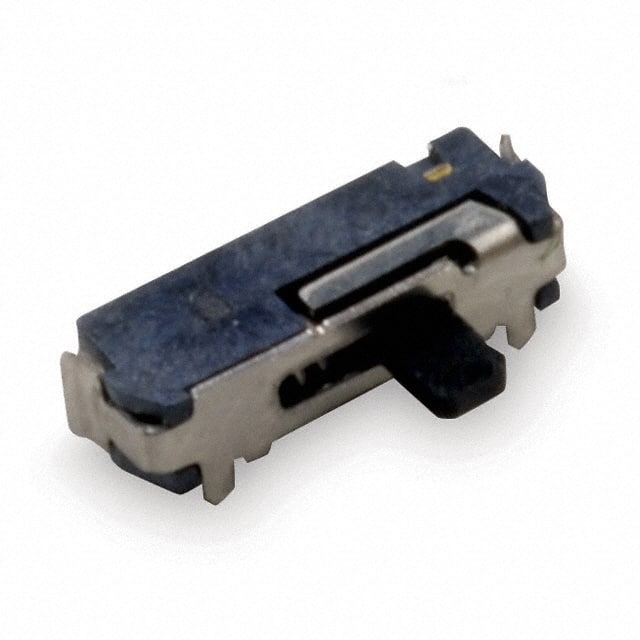

JSM08011SAQNR The C&K JSM08011SAQNR is a slide switch featuring a SPDT circuit and a 0.3A current rating at 4VDC. It is designed for surface mount applications with a right angle orientation.
Mfr Part #:

JSM08011SAQNR

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K JSM08011SAQNR is a slide switch featuring a SPDT circuit and a 0.3A current rating at 4VDC. It is designed for surface mount applications with a right angle orientation.
✓ Total Stock: 1,750 pcs
$ Price Range: $0.75

JSM08011SAQNR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,750 pcs
On Request
1750 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JSM08011SAQNR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Plating
Contact Timing
Current Rating (Amps)
Mounting Type
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

JSM08011SAQNR Description

Short technical summary and product information.

The C&K JSM08011SAQNR is a sub-miniature slide switch with a Single Pole Double Throw (SPDT) configuration. It is rated for 0.3A at 4VDC, making it suitable for low-power electronic applications.



This switch features a surface mount, right angle mounting type and a gull wing termination style. The actuator travel is 2mm. The operating temperature range is from -10°C to +60°C. The contact material is Beryllium Copper with Silver plating.



The JSM08011SAQNR is supplied in a reel package with a standard pack quantity of 1800 units. It has a flammability rating of UL 94 V-2.

JSM08011SAQNR Quick Information

Product Type: Slide Switch
Series: JS
Canonical Name: C&K JSM08011SAQNR Slide Switch
Subcategory: Slide Switches

JSM08011SAQNR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JSM08011SAQNR Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

JSM08011SAQNR Features

  • SPDT slide switch with 0.3A at 4VDC rating.
  • Surface mount, right angle mounting.
  • 2mm actuator travel.
  • Beryllium Copper contacts with Silver plating.
  • Operates from -10°C to +60°C.

JSM08011SAQNR Applications

  • Suitable for low-power electronic circuits.
  • Used in compact device designs.
  • Ideal for signal routing applications.
  • General purpose switching needs.

JSM08011SAQNR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the contact current rating of the JSM08011SAQNR?

The contact current rating is 0.3A.

What is the voltage rating of the JSM08011SAQNR?

The voltage rating is 4 VDC.

What is the operating temperature range for the JSM08011SAQNR?

The operating temperature range is -10°C to +60°C.

What is the actuator travel of the switch?

The actuator travel is 2 mm.

What material are the contacts made of?

The contacts are made of Beryllium Copper with Silver plating.

What environmental compliance standards does the switch meet?

It has a UL 94 V-2 flammability rating.
