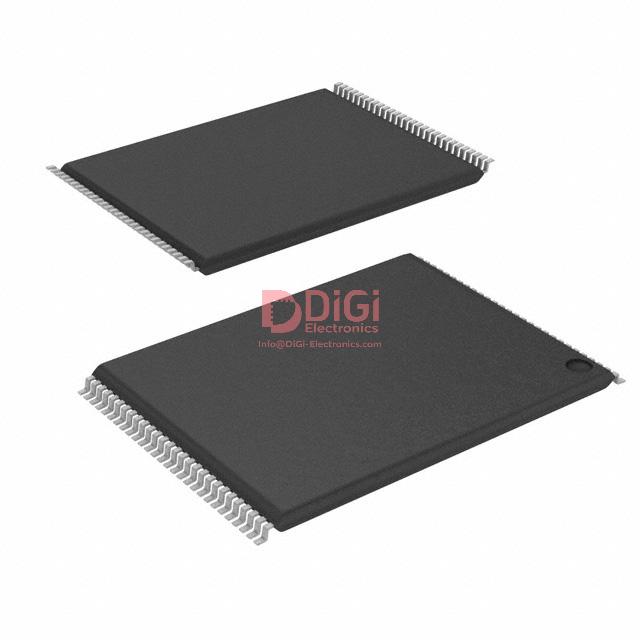

JS28F00AP33BFA The JS28F00AP33BFA is a 1 Gbit Parallel NOR Flash memory from MIC. It features a 64M x 16 organization, 105 ns access time, and operates from 2.3V to 3.6V.
Mfr Part #:

JS28F00AP33BFA

Available from 1 distributors
Mfr Name: MIC
MIC
The JS28F00AP33BFA is a 1 Gbit Parallel NOR Flash memory from MIC. It features a 64M x 16 organization, 105 ns access time, and operates from 2.3V to 3.6V.
✓ Total Stock: 177 pcs

JS28F00AP33BFA Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
177 pcs
On Request
177 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JS28F00AP33BFA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Access Time
Clock Frequency
Interface
Memory Format
Memory Organization
Memory Size
Memory Type
Mounting Type
Operating Temperature
Package / Case
SVHC Present
Storage Temperature
Supplier Device Package
Technology
View Similar Products (0)

JS28F00AP33BFA Description

Short technical summary and product information.

The JS28F00AP33BFA is a 1 Gbit (64M x 16) Parallel NOR Flash memory device from MIC. It uses non-volatile FLASH - NOR technology and provides a parallel interface with a 40 MHz clock frequency and 105 ns access time.



This memory supports a wide operating voltage range of 2.3V to 3.6V for both core (VCC) and I/O (VCCQ). It features buffered enhanced factory programming (BEFP) at 2 MB/s typical and 3.0V buffered programming at 1.46 MB/s typical using a 512-word buffer. Typical standby current is 75 µA for the 1 Gb density.



The device is offered in a 56-TFSOP package (0.724" width) with surface mount mounting, also known as supplier device package 56-TSOP. It is built on 65nm process technology and rated for a minimum of 100,000 ERASE cycles per block. Operating temperature range is -40°C to 85°C.

JS28F00AP33BFA Quick Information

Product Type: NOR Flash Memory
Canonical Name: JS28F00AP33BFA 1 Gbit (64M x 16) Parallel NOR Flash Memory
Subcategory: Flash

JS28F00AP33BFA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JS28F00AP33BFA Features

  • 1 Gbit (64M x 16) NOR Flash memory.
  • 105 ns access time and 40 MHz clock.
  • Operates from 2.3V to 3.6V supply.
  • Surface mount 56-TSOP package.
  • 100,000 minimum erase cycles per block.

JS28F00AP33BFA Applications

  • Ideal for code storage in embedded systems.
  • Used in industrial and automotive applications.
  • Suitable for boot memory in processors.
  • Designed for high-reliability data storage.

JS28F00AP33BFA FAQs

6 frequently asked questions generated from this part’s specifications.
What is the memory size of the JS28F00AP33BFA?

The JS28F00AP33BFA has a memory size of 1 Gbit.

What is the operating voltage range?

The operating voltage range is 2.3V to 3.6V for both core (VCC) and I/O (VCCQ).

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package does the JS28F00AP33BFA come in?

It comes in a 56-TFSOP surface mount package (56-TSOP supplier device package).

What is the access time?

The access time is 105 ns.

How many erase cycles per block are supported?

The device supports a minimum of 100,000 erase cycles per block.
