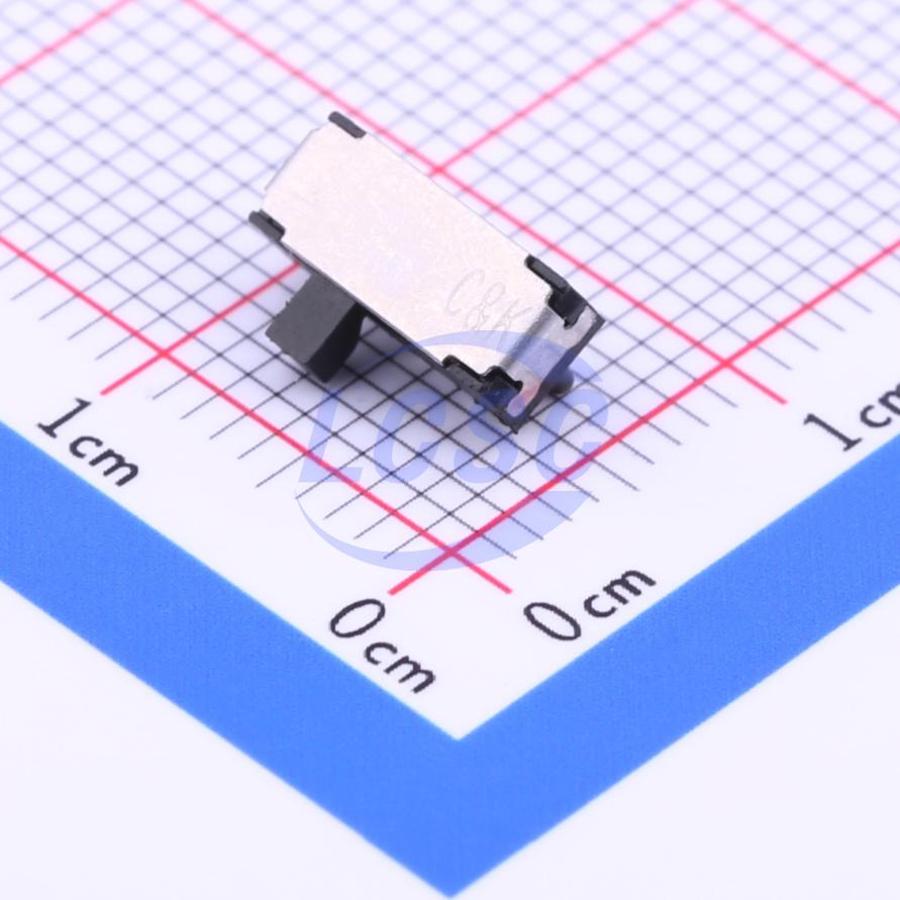

JS202011JAQN The C&K Components JS202011JAQN is a DPDT slide switch with a contact rating of 300mA at 6VDC. It features a surface mount J lead termination style.
Mfr Part #:

JS202011JAQN

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components JS202011JAQN is a DPDT slide switch with a contact rating of 300mA at 6VDC. It features a surface mount J lead termination style.
✓ Total Stock: 5 pcs
$ Price Range: $0.75

JS202011JAQN Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JS202011JAQN Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Resistance
Contact Timing
Current Rating (Amps)
Insulation Resistance
Lead Style
Mounting Type
Operating Temperature
Storage Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

JS202011JAQN Description

Short technical summary and product information.

The C&K Components JS202011JAQN is a sub-miniature slide switch from the JS Series. It offers a DPDT (Double Pole, Double Throw) circuit configuration with a contact rating of 300mA at 6VDC or 100mA at 30VDC. This switch is designed for surface mounting with a right-angle J lead termination style.



Key electrical specifications include a contact resistance of 70 mΩ max. and an insulation resistance of 100 MΩ min. at 500V. The dielectric strength is rated at 500 VAC min. The switch operates reliably within a temperature range of -40°C to 85°C.



Constructed with a copper alloy contact material and silver plating, the JS202011JAQN is suitable for various instrumentation and electronic applications. Its low-profile design and positive detent make it a practical choice for space-constrained designs.

JS202011JAQN Quick Information

Product Type: Slide Switch
Series: JS Series
Canonical Name: JS202011JAQN DPDT Slide Switch
Subcategory: Slide Switch

JS202011JAQN Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JS202011JAQN Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

JS202011JAQN Features

  • DPDT circuit configuration.
  • 300mA at 6VDC contact rating.
  • Surface mount J lead termination.
  • Operates from -40°C to 85°C.
  • Low-profile sub-miniature design.

JS202011JAQN Applications

  • Suitable for telecommunication products.
  • Used in computer peripherals.
  • Ideal for thermostat select switches.
  • Applicable for general instrumentation.

JS202011JAQN FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the JS202011JAQN switch?

The operating voltage of the JS202011JAQN switch is 6 V.

What is the contact rating for the JS202011JAQN switch?

The contact rating is 0.3A at 6VDC or 0.1A at 30VDC.

What is the electrical life expectancy of the switch?

The electrical life is rated for 5,000 cycles.

What is the operating temperature range for the JS202011JAQN?

-40°C to 85°C.

What is the contact resistance of the switch?

The maximum contact resistance is 70 milliohms.

Is the JS202011JAQN RoHS compliant?

Yes, it is RoHS3 compliant.
