| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

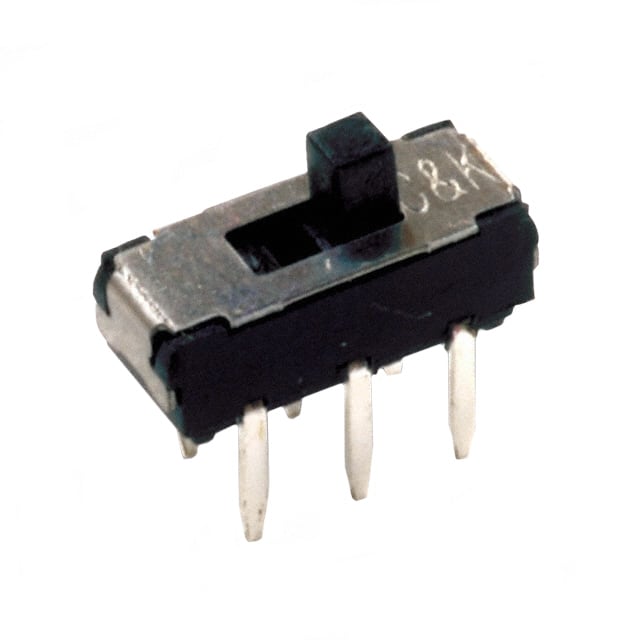

The C&K Components JS202011CQN is a sub-miniature slide switch from the JS Series. It features a DPDT (Double Pole Double Throw) circuit configuration, suitable for applications requiring reliable switching.
This switch is designed with a low profile and positive detent, offering a contact rating of 0.3A at 6VDC or 0.1A at 30VDC. It has an electrical life of 5,000 make-and-break cycles and a contact resistance of 70 mΩ maximum. The insulation resistance is 100 MΩ minimum at 500V, with a dielectric strength of 500 VAC minimum.
Constructed with a nylon housing and actuator, and copper alloy contacts with silver plating, the JS202011CQN is built for durability. It operates within a temperature range of -40°C to 85°C and features a through-hole mounting type with PC pin termination. The switch is RoHS3 compliant.
Ideal for telecommunication products, computer peripherals, and other instrumentation, this slide switch provides a dependable solution for various electronic designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 6 V.
The contact rating is 0.3A at 6VDC.
The electrical life is rated for 5,000 cycles.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS3 compliant.
