| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

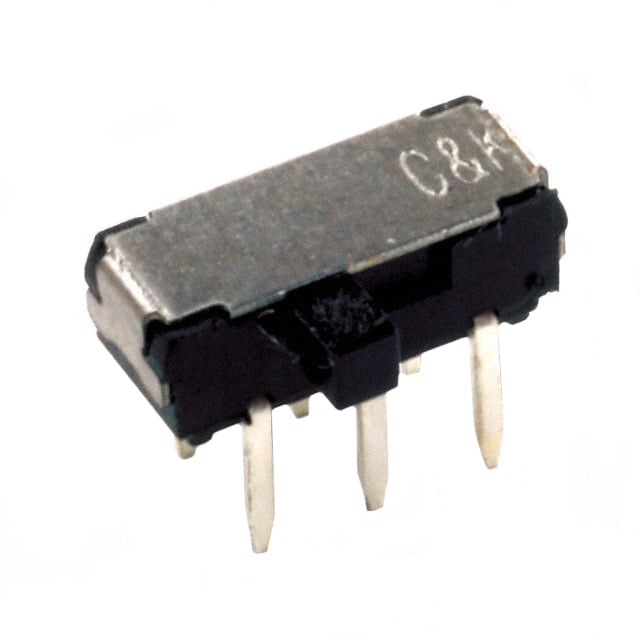

The C&K Components JS202011AQN is a sub-miniature slide switch from the JS Series. It features a Double Pole Double Throw (DPDT) configuration, suitable for applications requiring control over multiple circuits simultaneously.
This switch is rated for 300mA at 6VDC or 100mA at 30VDC, with an electrical life of 5,000 make-and-break cycles. It has a contact resistance of 70 mΩ maximum and an insulation resistance of 100 MΩ minimum at 500V. The dielectric strength is 500 VAC minimum.
Designed for reliability, the JS202011AQN operates within a temperature range of -40°C to 85°C. It features through-hole mounting with a right-angle termination style, making it suitable for PCB integration. The housing and actuator are constructed from black 4/6 nylon, and the contacts are copper alloy with silver plating.
This switch is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.3A @ 6VDC or 0.1A @ 30VDC.
The operating temperature range is -40°C to 85°C.
The RoHS status is RoHS3 Compliant.
The mounting type is Through Hole, Right Angle.
The circuit configuration is DPDT.
