| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

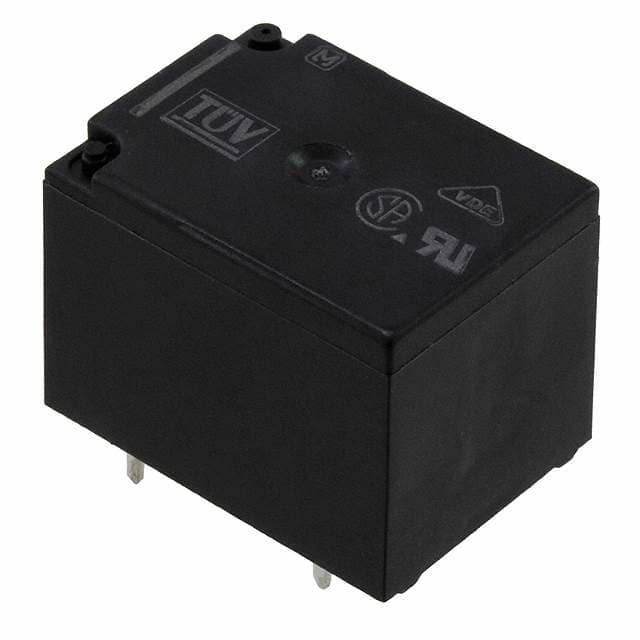

This Panasonic JS1F-48V-F is a general purpose power relay designed for applications requiring robust switching capabilities. It operates with a 48VDC coil voltage and can handle a maximum current of 10A. The relay features a Single Pole Double Throw (SPDT) contact form, also known as 1 Form C.
With a contact material of Silver Tin Oxide (AgSnO), it offers reliable performance. The relay has an operate and release time of 10 ms, ensuring quick response. It is suitable for a wide operating temperature range of -40°C to 70°C. The component is sealed for flux protection and utilizes a non-latching coil type.
Designed for through-hole mounting, the JS1F-48V-F has a PC pin termination style. Its switching voltage capability extends up to 250VAC or 100VDC. This relay is a suitable choice for various industrial and electronic control applications where dependable power switching is essential.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The relay has an operating voltage of 48 VDC.
The contact form is SPDT (1 Form C).
The contact rating is 10 A.
The maximum switching voltage is 250 VAC.
The relay operates from -40°C to 70°C.
Yes, the relay is RoHS3 compliant.
