| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100,000 pcs
|
100000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Insulation | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Lead Style | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Seal Rating | |
| Switching Voltage | |
| Termination Style |

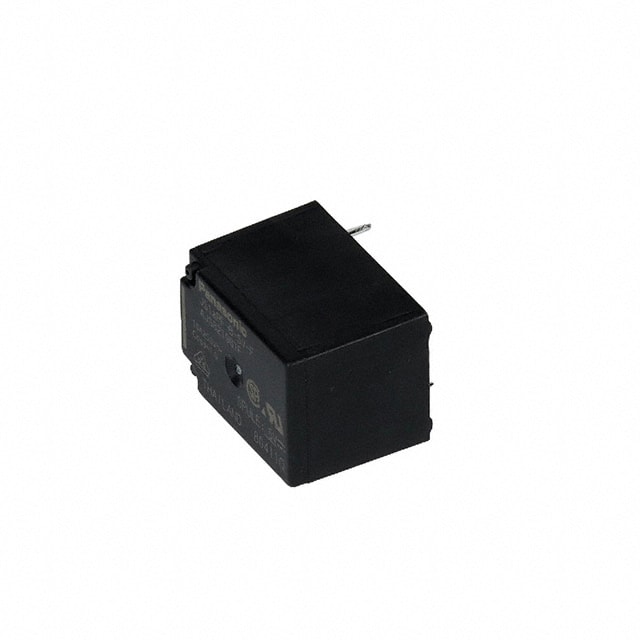

This Panasonic JS1APF-B-5V-F is a general purpose power relay designed for reliable switching applications. It operates with a 5VDC coil voltage and requires 3.5 VDC to operate, releasing at 0.5 VDC. The relay contacts are rated for up to 10A and can switch up to 250VAC or 100VDC. The contact form is SPST-NO (1 Form A), utilizing Silver Tin Oxide material for durability.
Designed for through-hole mounting with PC pin termination, this relay is suitable for various PCB applications. It operates within a temperature range of -40°C to 85°C and features a sealed flux protection rating. The operate and release times are both 10 ms, ensuring efficient performance. The coil insulation is Class B.
This component is identified by its part number JS1APF-B-5V-F and is manufactured by Panasonic Electronic Components. It falls under the category of Power Relays, Over 2 Amps.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 5 VDC.
The contact current rating is 10 A.
It has an SPST-NO (1 Form A) contact form.
The operating temperature range is -40°C to 85°C.
