| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
180 pcs
|
180 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dielectric Material | |
| Height | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Termination | |
| Tolerance | |
| Voltage Rating | |
| Width |

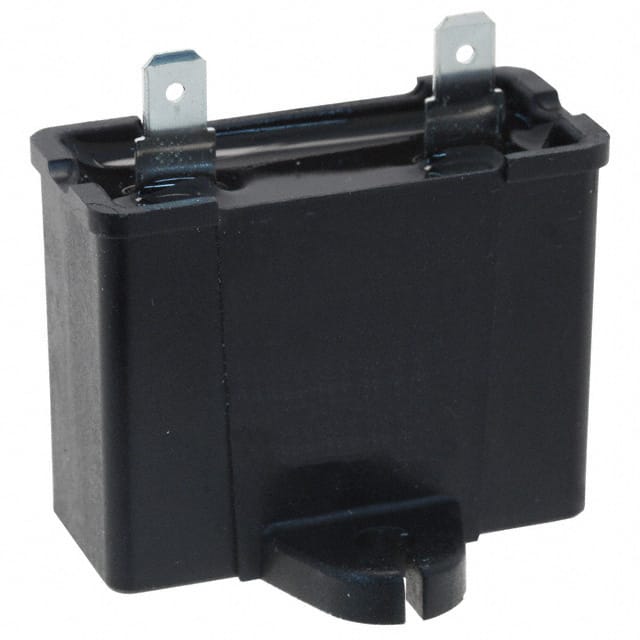

The Panasonic JS181755-AA is a metallized polypropylene film capacitor designed for motor run applications. It offers a capacitance of 7.5 µF with a voltage rating of 180VAC and a tolerance of ±10%.
This capacitor features a chassis mount design with quick connect terminals (0.187" / 4.7mm) for easy installation. The rectangular box package measures 39.50mm x 17.50mm x 31.00mm and operates over a temperature range of -25°C to 70°C.
Typical applications include AC motor start/run circuits, power factor correction, and HVAC equipment. The metallized polypropylene construction provides self-healing properties and stable performance under AC conditions.
7.5 µF.
180VAC.
Metallized polypropylene (PP).
±10%.
Rectangular box, chassis mount.
Chassis mount with quick connect terminals (0.187").
-25°C to 70°C.
