| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
173 pcs
|
173 pcs | On Request | 1 | On Request | On Request | NDC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Storage Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

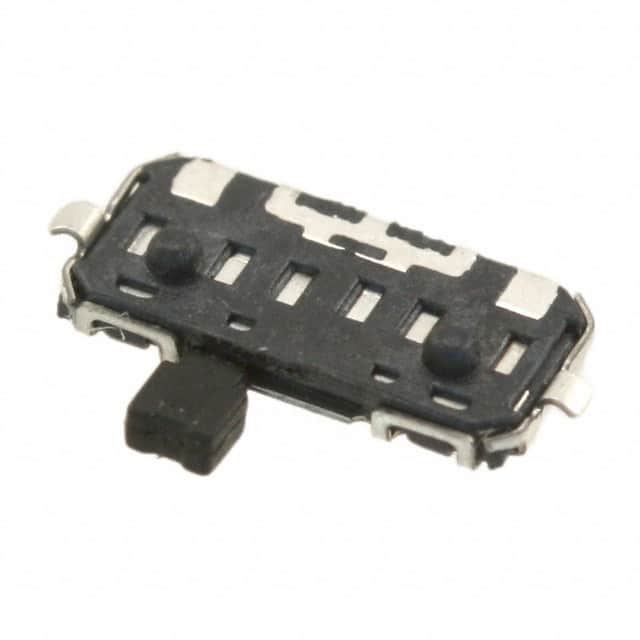

The C&K Components JS102000SAQN is a sub-miniature slide switch from the JS Series. It features a Single Pole Double Throw (SPDT) configuration, suitable for applications requiring simple on-on switching.
This switch is designed for reliable operation with a voltage rating of 5V and a current rating of 1mA. It operates within a temperature range of -40°C to 85°C, making it versatile for different environments. The contact material is copper alloy with a silver finish, and it has a contact resistance of 70 mΩ max.
The JS102000SAQN is designed for surface mounting with a right-angle gull wing termination style. Its low-profile design and robust construction make it suitable for telecommunication products, computer peripherals, and instrumentation.
Key specifications include an electrical life of 5,000 make-and-break cycles and an insulation resistance of 100 MΩ min. @ 500V. The switch housing and actuator are made of 4/6 nylon.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40°C to 85°C
0.3A @ 6VDC or 0.1A @ 30VDC
5,000 cycles
Surface Mount, Right Angle
Copper Alloy
Silver
