| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Voltage Rating |

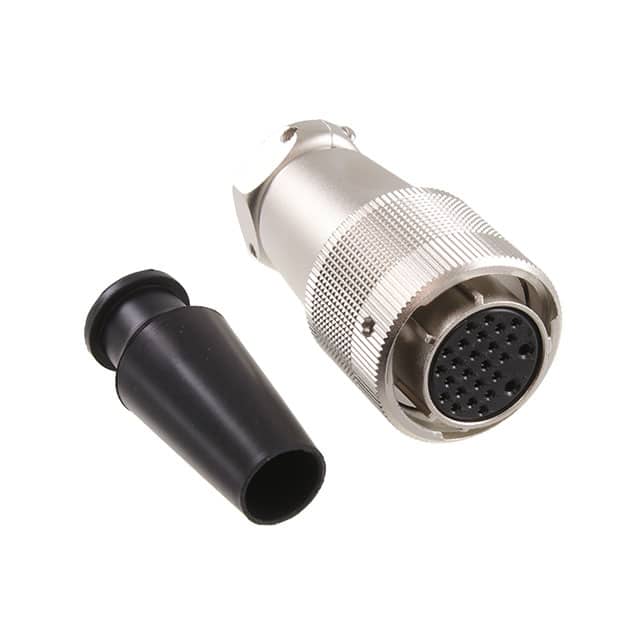

The Hirose Electric JRC21BP-26S(31) is a circular connector plug designed for free hanging (in-line) mounting. It features 26 female socket contacts with solder cup termination, making it suitable for cable assembly applications. The connector uses a bayonet locking mechanism for secure mating and a shell size of 21.
This connector is constructed with an aluminum alloy shell finished in nickel, providing durability and corrosion resistance. The contacts are finished with silver for good conductivity. It is rated for 5A current and 250VAC/350VDC voltage, with an operating temperature range of -25°C to 85°C. The part includes a backshell, cable clamp, coupling nut, and strain relief for cable management.
The JRC21BP-26S(31) is keyed for orientation and unshielded. It has a material flammability rating of UL94 V-0. The cable opening is 0.480 inches (12.20mm). This connector is RoHS3 compliant, MSL 1, and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $40.90 | $40.90 |
| 10+ | $34.76 | $34.76 |
| 30+ | $32.17 | $32.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 26 positions.
5 A.
250VAC, 350VDC.
Free Hanging (In-Line).
Bayonet Lock.
-25°C to 85°C.
Silver.
