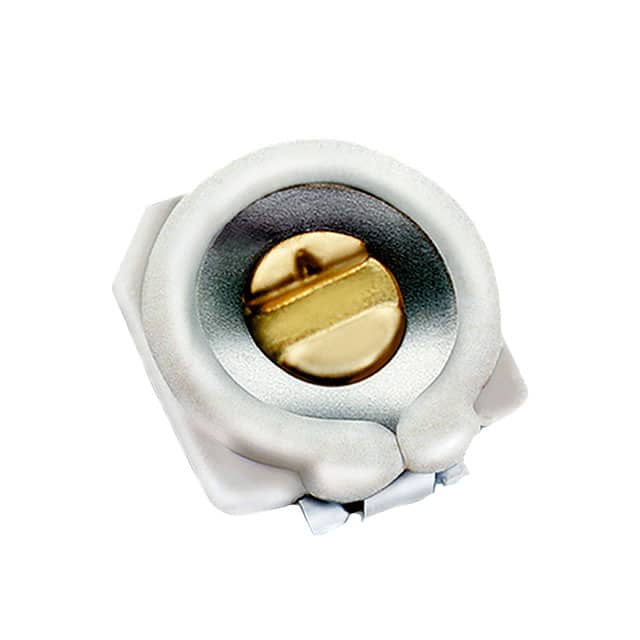

JR150 The Knowles Voltronics JR150 is a surface mount trimmer capacitor with a capacitance range of 3-15pF and a voltage rating of 125V. It features a ceramic dielectric and operates within a temperature range of -40°C to 85°C.
Mfr Part #:

JR150

Available from 1 distributors
Mfr Name: not defined
not defined
The Knowles Voltronics JR150 is a surface mount trimmer capacitor with a capacitance range of 3-15pF and a voltage rating of 125V. It features a ceramic dielectric and operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 290 pcs
$ Price Range: $0.99

JR150 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
290 pcs
On Request
290 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JR150 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Adjustment Type
Capacitance
Dielectric Material
Dimensions
Features
Mounting Type
Operating Temperature
SVHC Present
Voltage Rating
View Similar Products (0)

JR150 Description

Short technical summary and product information.

The JR150 from Knowles Voltronics is a general-purpose trimmer capacitor designed for surface mount applications. It offers a capacitance range of 3pF to 15pF with a voltage rating of 125V. The capacitor utilizes a ceramic dielectric material, ensuring stable performance.



Key electrical characteristics include a Q factor of 1500 at 1MHz. The component is designed to operate within a temperature range of -40°C to 85°C. Its compact dimensions are 3.50mm in length and 3.10mm in width, with a maximum seated height of 1.15mm.



This trimmer capacitor is suitable for applications requiring precise capacitance adjustments. Its surface mount form factor facilitates integration into modern electronic assemblies. The top adjustment type allows for easy tuning during circuit calibration.

JR150 Quick Information

Product Type: Trimmer Capacitor
Series: JR
Canonical Name: JR150 Trimmer Capacitor
Subcategory: Trimmers, Variable Capacitors

JR150 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JR150 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

JR150 Features

  • Capacitance range of 3 to 15pF.
  • Rated for 125V DC operation.
  • Ceramic dielectric material.
  • Surface mount package.
  • Operates from -40°C to 85°C.

JR150 Applications

  • Used in RF tuning and impedance matching circuits.
  • Suitable for high-frequency oscillator frequency adjustment.
  • Ideal for surface-mount trimmer capacitor applications.
  • Used in general-purpose variable capacitance tuning applications.

JR150 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the capacitance range of the JR150 trimmer capacitor?

The JR150 has a capacitance range of 3pF to 15pF.

What is the maximum voltage rating for the JR150?

The JR150 is rated for a maximum voltage of 125V.

What is the operating temperature range for the JR150?

The JR150 operates within a temperature range of -40°C to 85°C.

What type of dielectric material does the JR150 use?

The JR150 uses a ceramic dielectric material.

What are the dimensions of the JR150 trimmer capacitor?

The JR150 measures 3.50mm in length and 3.10mm in width.

What is the mounting type for the JR150?

The JR150 is a surface mount component.

What is the Q factor of the JR150 at 1MHz?

The Q factor of the JR150 is 1500 at 1MHz.
