Mfr Part #:

JP006821U

Name: JP006821U
Brand: Pulse Electronics
SKU: JP006821U

Mfr Name: Pulse Electronics

Description:

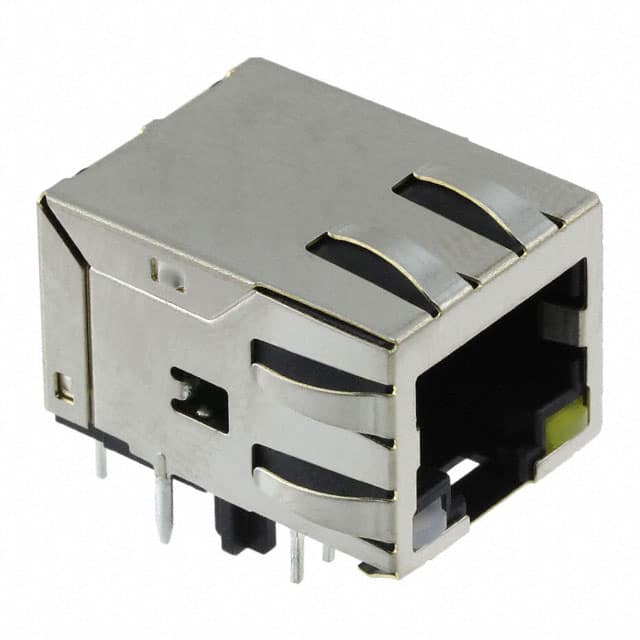

CONN JACK 1PORT 100 BASE-TX PCB

Stock on Request

JP006821U Description

Short technical summary and product information.

CONN JACK 1PORT 100 BASE-TX PCB

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

JP011821UNL

Pulse Electronics

CONN JACK 1PORT 100 BASE-TX PCB

JP011821U

Pulse Electronics

CONN JACK 1PORT 100 BASE-TX PCB

JP006821UNL

Pulse Electronics

CONN JACK 1PORT 100 BASE-TX PCB

Category	Modular Connector Jacks With Magnetics
Manufacturer Name	Pulse Electronics
Applications	10/100 Base-TX, AutoMDIX
Connector Type	RJ45
Contact Finish	Gold
Contact Material	Phosphor Bronze
Features	Board Guide
Height Above Board	0.550" (13.97mm)
LED Color	Green, Orange - Yellow
Mounting Type	Through Hole
Number of Cores per Jack	4
Number of Ports	1
Number of Rows	1
Operating Temperature	0°C ~ 70°C
Orientation	90° Angle (Right)
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder
