| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59,129 pcs
|
59129 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,580 pcs
|
1580 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| GPIO | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Voltage |

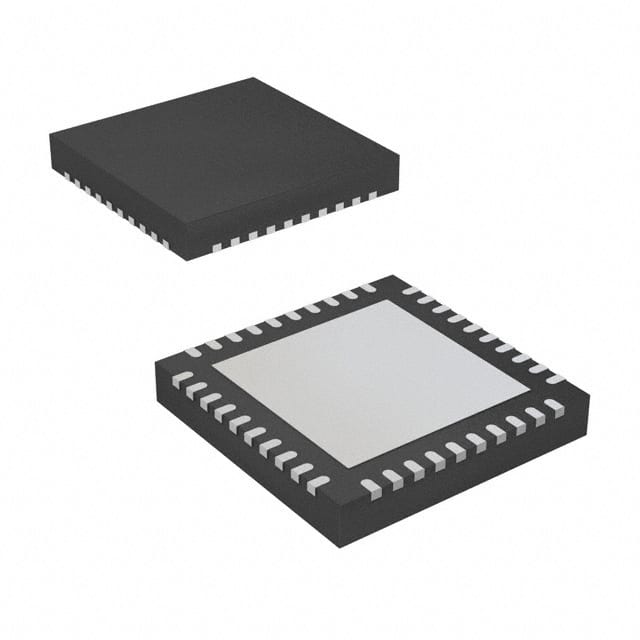

The JN5169/001K from NXP Semiconductors is an ultra-low power, high-performance wireless microcontroller designed for Zigbee applications. It integrates 512 KB of embedded Flash, 32 kB of RAM, and 4 kB of EEPROM, enabling Over-The-Air (OTA) upgrade capability without external memory.
This device features a 32-bit RISC processor with programmable clock speeds, offering high coding efficiency and low-power operation. It includes a 2.4 GHz IEEE802.15.4 compliant transceiver with configurable transmit power up to +10 dBm and a receiver sensitivity of -96 dBm. The low RX operating current, down to 13 mA, and a 0.7 µA sleep timer mode contribute to excellent battery life.
Peripherals include a 2-wire I²C-bus and SPI-bus, a 6-channel ADC with battery monitor, and a temperature sensor. The JN5169/001K supports a wide range of applications and is available in a 40-VFQFN package, suitable for surface mounting. It operates within a temperature range of -40°C to +125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $710.26 | $710.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The JN5169/001K features 512 KB of embedded Flash, 32 kB of RAM, and 4 kB of EEPROM.
The JN5169/001K operates within a voltage range of 2V to 3.6V.
The JN5169/001K operates in a temperature range of -40°C to +125°C.
The receiver sensitivity of the JN5169/001K is -96 dBm.
The transmit power of the JN5169/001K is configurable up to +10 dBm.
The JN5169/001K supports I²C, SPI, and UART serial interfaces.
