Mfr Part #:

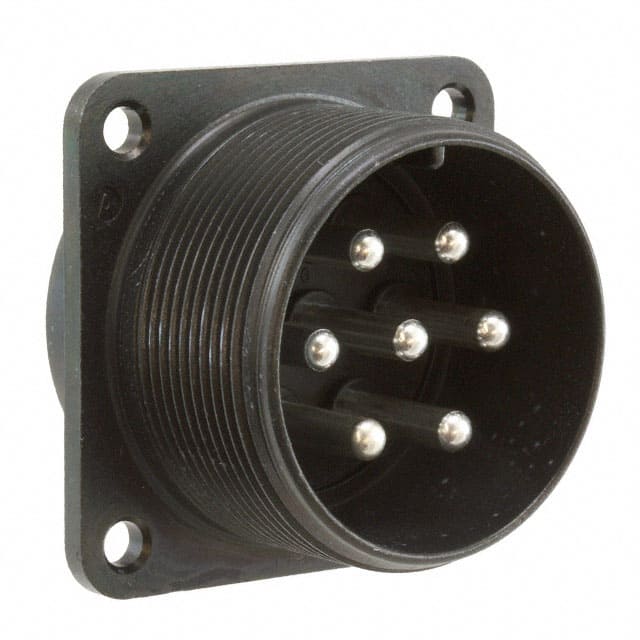

JL04V-2E24-10PE-B-R

Name: JL04V-2E24-10PE-B-R
Brand: JAE Electronics
SKU: JL04V-2E24-10PE-B-R

Mfr Name: JAE Electronics

Description:

CONN RCPT MALE 7P SOLDER CUP

Stock on Request

JL04V-2E24-10PE-B-R Description

Short technical summary and product information.

CONN RCPT MALE 7P SOLDER CUP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

JAE Electronics

CONN RCPT MALE 7P SOLDER CUP

Category	Circular Connector Assemblies
Manufacturer Name	JAE Electronics
Cable Opening	1.417" (36.00mm)
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish	Silver
Current Rating (Amps)	46A
Fastening Type	Threaded
Features	Ground
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	7 (6 + PE)
Operating Temperature	-55°C ~ 125°C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size	24-10
Termination	Solder Cup
