| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
572 pcs
|
572 pcs | On Request | 1 | On Request | On Request | 18+22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

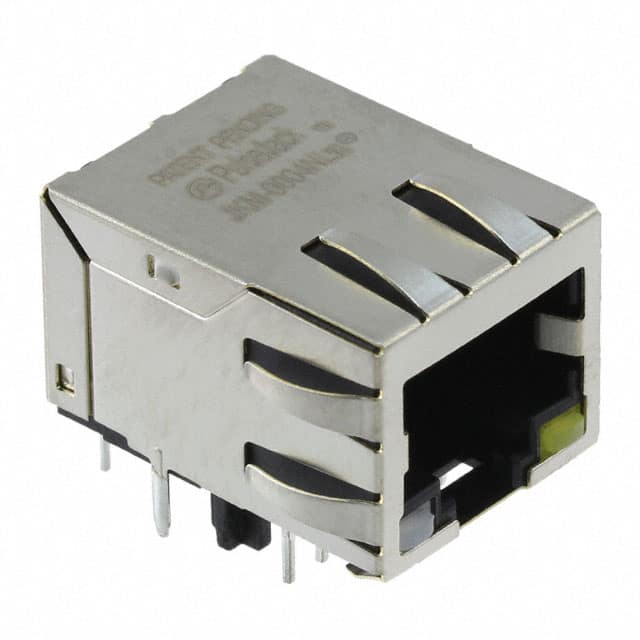

This Pulse Electronics JKM-0004NL is a modular connector jack with magnetics, featuring an RJ45 connector type. It is designed for 10/100/1000 Base-T applications and supports AutoMDIX. The connector has a shielded design with EMI finger and a board guide feature.
Mounting is achieved via through hole termination with solder contacts. The orientation is 90° angle (right) with the tab direction pointing down. It has a height above the board of 13.84mm. The operating temperature range is from 0°C to 70°C.
This component has 1 port and 1 row, with 8 cores per jack. The contact finish is gold over phosphor bronze material. The LED color is green and yellow. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Pulse Electronics JKM-0004NL is an RJ45 connector.
The JKM-0004NL connector is mounted using the through hole method.
The operating temperature range for the JKM-0004NL is 0°C to 70°C.
Yes, the JKM-0004NL connector is shielded and includes an EMI finger.
The JKM-0004NL connector is suitable for 10/100/1000 Base-T applications and supports AutoMDIX.
