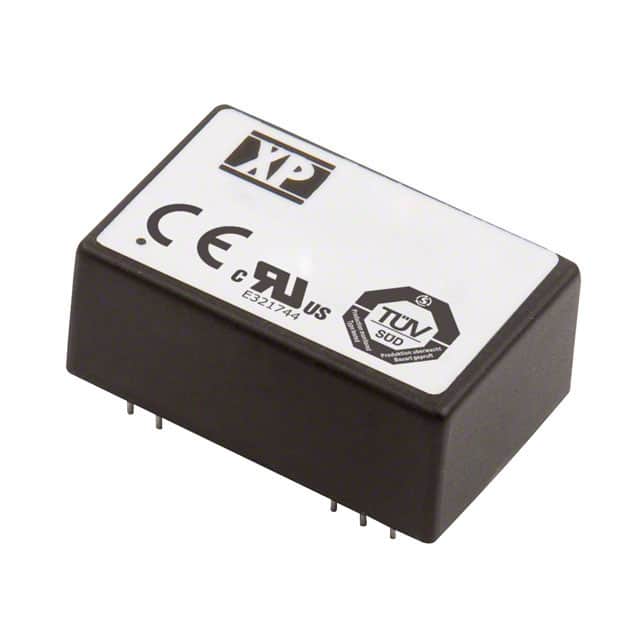

JHM1012S12 The XP Power JHM1012S12 is a 10W isolated DC-DC converter with a 9-18V input range and a regulated 12V output at 833mA. It comes in a DIP-24 package and is designed for medical applications.
Mfr Part #:

JHM1012S12

Available from 1 distributors
Mfr Name: XP Power
XP Power
The XP Power JHM1012S12 is a 10W isolated DC-DC converter with a 9-18V input range and a regulated 12V output at 833mA. It comes in a DIP-24 package and is designed for medical applications.
✓ Total Stock: 30 pcs
$ Price Range: $44.54 - $53.02

JHM1012S12 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JHM1012S12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Medical Grade
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

JHM1012S12 Description

Short technical summary and product information.

The XP Power JHM1012S12 is a 10W isolated DC-DC converter belonging to the JHM10 series. It accepts a 9V to 18V DC input and delivers a single regulated 12V output at up to 833mA. The converter features reinforced 4000 VAC isolation meeting IEC60601-1 2xMOPP requirements, making it suitable for medical applications. Protection features include overcurrent, overvoltage, short-circuit, and undervoltage lockout. With an efficiency of 88%, it operates over a -40°C to +80°C temperature range. The component is housed in a 24-DIP module with through-hole mounting, measuring 31.8mm x 20.3mm x 12.7mm.

JHM1012S12 Quick Information

Product Type: Isolated DC-DC Converter
Series: JHM10
Canonical Name: XP Power JHM1012S12 Isolated DC-DC Converter, 9-18V Input, 12V 833mA Output, 10W, DIP-24
Subcategory: DC-DC Converters

JHM1012S12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1
REACH Status: REACH Unaffected

JHM1012S12 Estimated Pricing

Qty Low High
1+ $53.02 $53.02
5+ $51.43 $51.43
10+ $49.84 $49.84
25+ $47.72 $47.72
100+ $44.54 $44.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

JHM1012S12 Features

  • 4000 VAC reinforced isolation for medical use.
  • 88% typical efficiency at full load.
  • Overcurrent, overvoltage, short-circuit protection.
  • Wide input range 9-18V DC.
  • DIP-24 through-hole package with compact size.

JHM1012S12 Applications

  • Medical equipment requiring high isolation.
  • Industrial control systems needing regulated power.
  • Telecommunications and data communication devices.
  • Battery-powered equipment with wide input range.

JHM1012S12 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the JHM1012S12?

The input voltage range is 9V to 18V DC.

What output voltage and current does the JHM1012S12 provide?

It provides a single output of 12V at up to 833mA, rated at 10W.

What is the isolation rating of this converter?

It has 4000 VAC reinforced insulation meeting 2xMOPP per IEC60601-1.

What is the operating temperature range?

The operating temperature range is -40°C to +80°C.

What protection features are included?

Overcurrent (OCP), overvoltage (OVP), short-circuit (SCP), and undervoltage lockout (UVLO).

What is the package type?

24-DIP Module, 7 Leads, through-hole mounting.

Is this converter suitable for medical applications?

Yes, it is designed for medical applications with 4000 VAC reinforced isolation and 2xMOPP.
