| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

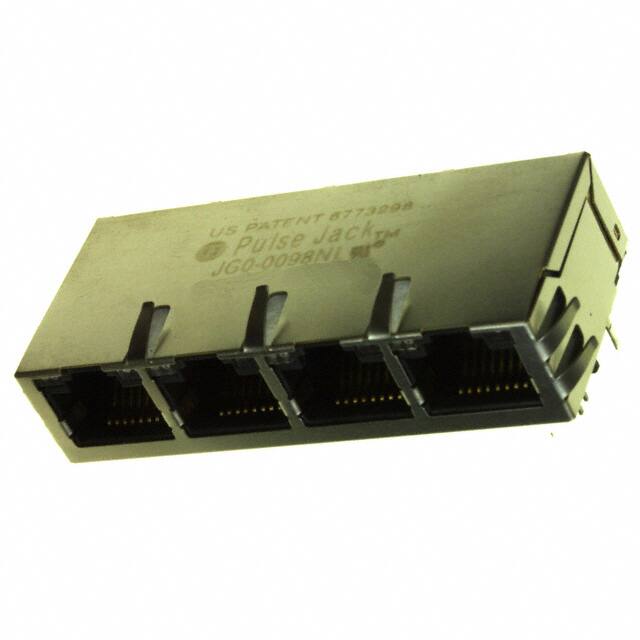

The Pulse Electronics JG0-0098NL is a 4-port RJ45 modular connector jack with integrated magnetics, designed for 10/100/1000 Base-T Ethernet applications with AutoMDIX support. Each port has 8 contacts (8P8C) and the connector is shielded with an EMI finger to reduce electromagnetic interference. The through hole mounting and 90° right angle orientation allow for efficient PCB layout in space-constrained designs. The connector includes a board guide feature for easy alignment during assembly. Contact material is phosphor bronze with gold finish for reliable connections. The operating temperature range is 0°C to 70°C. LED indicators are provided with green and amber colors for port status. This component is suitable for network switches, routers, and other networking equipment requiring multiple Ethernet ports in a single connector.
| Qty | Low | High |
|---|---|---|
| 1+ | $40.20 | $40.20 |
| 15+ | $33.20 | $33.20 |
| 30+ | $31.62 | $31.62 |
| 60+ | $30.11 | $30.11 |
| 105+ | $28.94 | $28.94 |
| 255+ | $27.19 | $27.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 ports.
Through hole.
90° angle (right).
Yes, shielded with EMI finger.
0°C to 70°C.
Green and amber per port.
10/100/1000 Base-T with AutoMDIX.
