| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Common Mode Rejection (Typical @ 1-125 MHz) | |
| Common Mode Rejection (Typical @ 125-500 MHz) | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Durability | |
| Features | |
| Height Above Board | |
| Hipot | |
| Housing Material | |
| Insertion Loss | |
| LED Color | |
| Lead Spacing | |
| Lead Style | |
| Mating Force | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Open Circuit Inductance | |
| Operating Temperature | |
| Orientation | |
| Retention | |
| Return Loss (Typical @ 1-10 MHz) | |
| Return Loss (Typical @ 30-60 MHz) | |
| Return Loss (Typical @ 60-80 MHz) | |
| Shield Contact Material | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Unmating Force | |
| crosstalk (Typical @ 1-10 MHz) | |
| crosstalk (Typical @ 30-60 MHz) | |
| crosstalk (Typical @ 60-100 MHz) |

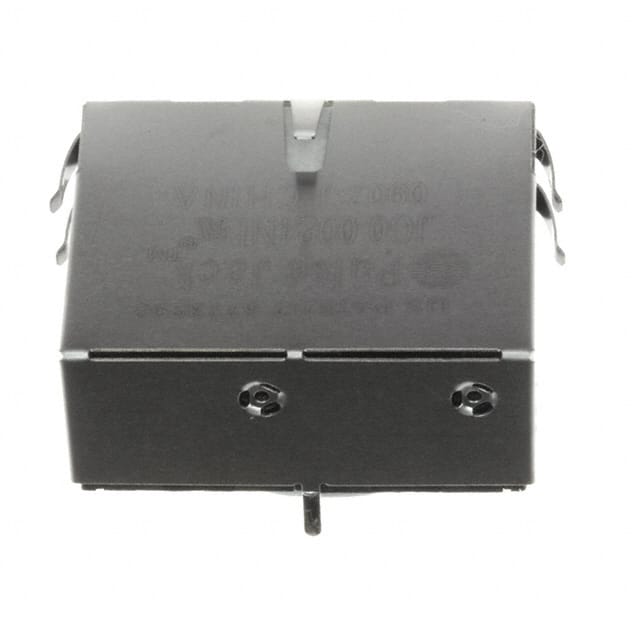

The Pulse Electronics JG0-0024NL is a 2-port RJ45 integrated connector module (ICM) from the PulseJack family, designed for 10/100/1000 Base-T Ethernet applications. It features a tab-up orientation and is shielded with an EMI finger for enhanced electromagnetic interference suppression.
This connector supports AutoMDIX and meets IEEE 802.3 specifications. It has a minimum open circuit inductance of 350 µH with 8 mA bias current and a hipot rating of 1500 Vrms. The operating temperature range is 0°C to 70°C.
The JG0-0024NL uses phosphor bronze contacts with gold plating and a brass shield contact with nickel finish. The housing is made of thermoplastic rated UL 94 V-0. It is RoHS compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $24.23 | $24.23 |
| 20+ | $19.61 | $19.61 |
| 40+ | $18.68 | $18.68 |
| 60+ | $18.15 | $18.15 |
| 100+ | $17.51 | $17.51 |
| 260+ | $16.37 | $16.37 |
| 500+ | $15.63 | $15.63 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is 0°C to 70°C.
The mounting type is through hole.
Yes, it is RoHS compliant.
The typical insertion loss is -1.0 dB from 1 to 100 MHz.
The minimum durability is 750 insertions (plug to jack).
The LED color is green for both left and right positions.
