| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,028 pcs
|
1028 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Height off PCB, Vertical | |
| Actuator Orientation | |
| Actuator Type | |
| Circuit | |
| Contact Rating @ Voltage | |
| Features | |
| Illumination | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Outline | |
| Switch Function | |
| Termination Style |

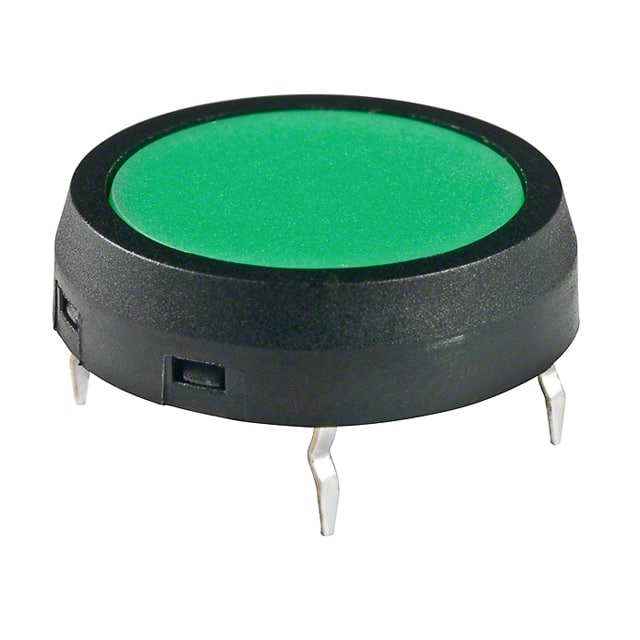

This NKK Switches JF15CP2F is a tactile switch featuring a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration. It is designed for Off-Mom operation and is process sealed.
The switch has a contact rating of 0.05A at 24VDC and an operating force of 300gf. The actuator is a round button, oriented for top actuation, with a height of 5.08mm off the PCB. The overall outline dimensions are 17.70mm in diameter.
Mounting is achieved via through-hole termination style using PC pins. The operating temperature range for this switch is -25°C to 85°C. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
This non-illuminated tactile switch is suitable for various electronic applications requiring a reliable momentary switching function.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -25°C to 85°C.
The contact rating is 0.05A at 24VDC.
The JF15CP2F switch is mounted using the through-hole method.
The JF15CP2F switch is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1.
