| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Failure Rate | |
| Features | |
| Finish | |
| Material | |
| Mounting Type | |
| Shell Size | |
| Temperature Rating |

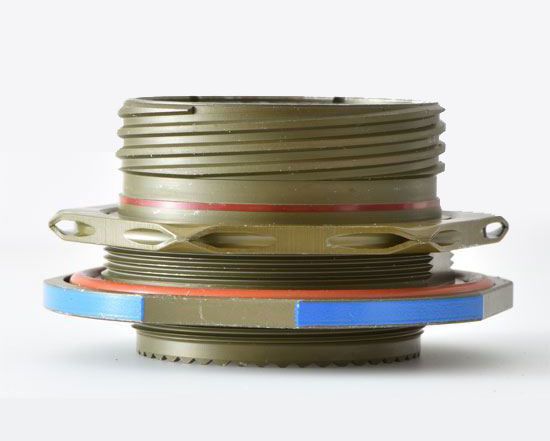

This Amphenol JD38999-24WD35PN is a high-reliability, high-durability circular connector designed for military, aerospace, aviation, and marine applications. It is MIL-Qualified to MIL-DTL-38999 Series III standards.
The connector is a Jam Nut Receptacle type with a shell size D and an aluminum housing with an Olive Drab Cadmium finish. It offers superior EMI shielding capability of 65dB minimum at 10 GHz, achieved through solid metal-to-metal coupling, grounding fingers, and thicker wall sections.
Designed to withstand severe high-temperature vibration up to 200°C and high impact shock without electrical discontinuity or disengagement, this connector ensures reliable performance in demanding environments. It features 37 positions for #22D,M contacts and a normal keying position.
The connector operates at temperatures up to 175°C and has undergone 500-hour salt spray testing. Its construction provides excellent resistance to shock.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact type is Pin.
The insert arrangement is 37.
The shell size is D.
The connector is made from Aluminum.
It provides at least 65dB EMI shielding at 10 GHz.
The temperature rating is 175°C.
