| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Height Above Board | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Cores per Jack | |
| Number of Ports | |
| Number of Rows | |
| Operating Temperature | |
| Orientation | |
| Shielding | |
| Tab Direction | |
| Termination |

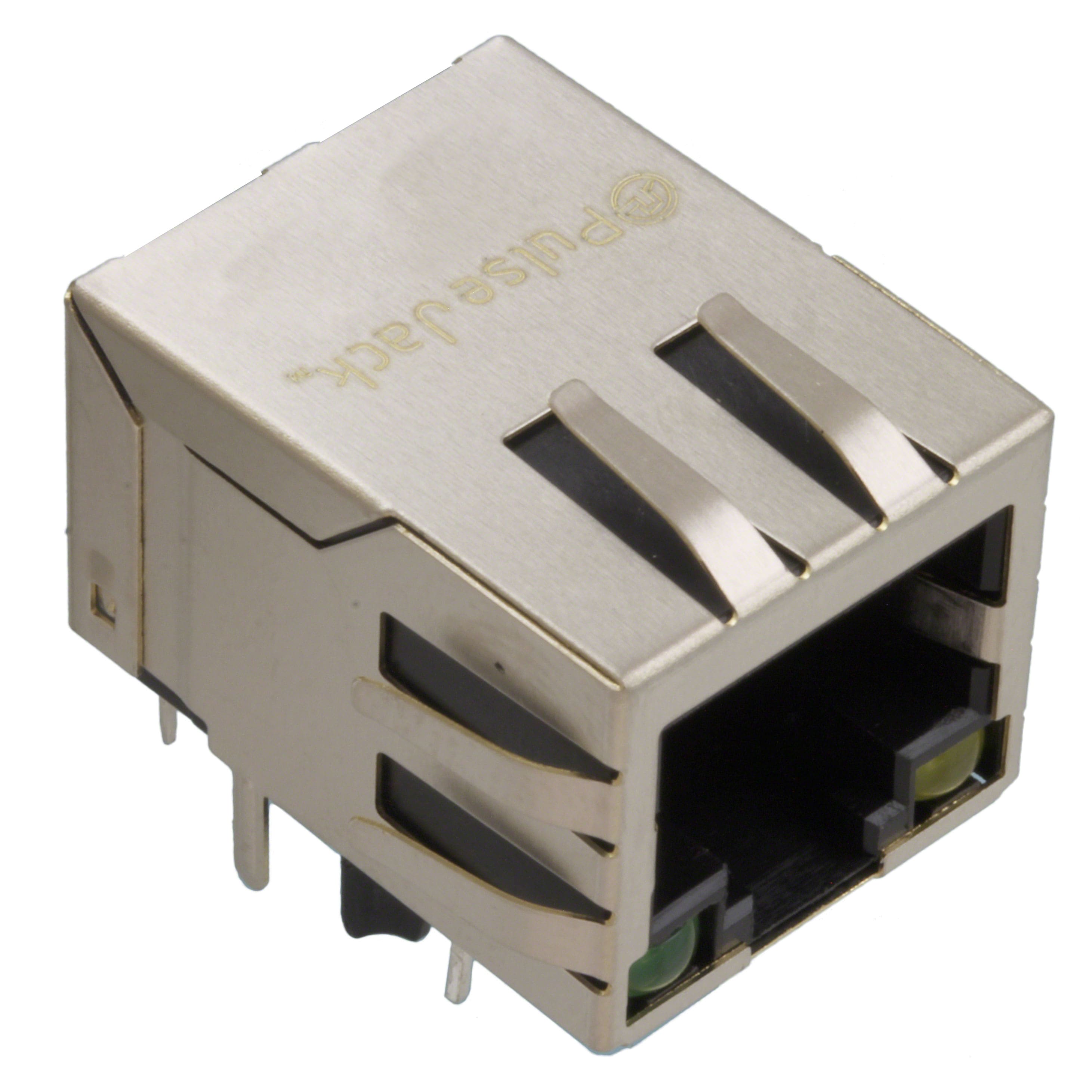

The JD0-0001NL is a single-port RJ45 modular connector jack with integrated magnetics, designed for Ethernet applications. Manufactured by Pulse Electronics, this connector supports 10/100/1000 Base-T and AutoMDIX, making it suitable for high-speed networking.
The connector features a through hole mounting style with solder termination and a 90° right angle orientation. It is shielded with an EMI finger for enhanced electromagnetic interference protection. The jack includes a board guide for easy alignment during assembly.
The contacts are made of phosphor bronze with gold finish, ensuring reliable electrical connections. The operating temperature range is 0°C to 70°C. The height above board is 13.65 mm (0.537 inches). The connector includes green and yellow LED indicators for link/activity status.
This component is commonly used in network interface cards, switches, routers, and other Ethernet-enabled devices. Its integrated magnetics simplify PCB design by eliminating the need for external transformers.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.14 | $7.14 |
| 10+ | $6.07 | $6.07 |
| 25+ | $5.69 | $5.69 |
| 50+ | $5.42 | $5.42 |
| 100+ | $5.16 | $5.16 |
| 250+ | $4.84 | $4.84 |
| 500+ | $4.60 | $4.60 |
| 1,000+ | $4.39 | $4.39 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is an RJ45 modular connector jack with integrated magnetics.
It has 1 port.
Through hole mounting.
Yes, it is shielded with an EMI finger.
It supports 10/100/1000 Base-T and AutoMDIX.
0°C to 70°C.
Green and yellow.
