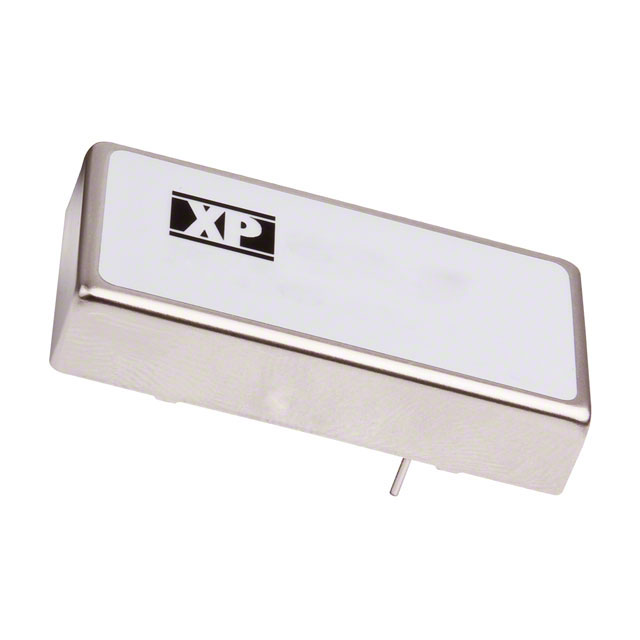

JCK1548S05 The JCK1548S05 from XP Power is a through-hole isolated DC/DC converter module delivering 5V at 3A (15W) from a 36V nominal input. It features overcurrent, short-circuit, and under-voltage lockout protection.
Mfr Part #:

JCK1548S05

Available from 1 distributors
Mfr Name: XP Power
XP Power
The JCK1548S05 from XP Power is a through-hole isolated DC/DC converter module delivering 5V at 3A (15W) from a 36V nominal input. It features overcurrent, short-circuit, and under-voltage lockout protection.
✓ Total Stock: 3 pcs
$ Price Range: $32.17

JCK1548S05 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JCK1548S05 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

JCK1548S05 Description

Short technical summary and product information.

The JCK1548S05 is an isolated DC/DC converter module from XP Power designed for commercial ITE (Information Technology Equipment) applications. It delivers a regulated 5V output at 3A, providing up to 15W of power from a nominal 36V input. The module achieves an efficiency of 85% and includes protection features such as overcurrent protection (OCP), short-circuit protection (SCP), and under-voltage lockout (UVLO).



Packaged in a compact 5-DIP through-hole module, the JCK1548S05 measures 50.8mm x 25.4mm x 10.2mm (2" x 1" x 0.4"). It operates over a wide temperature range of -40°C to +100°C, making it suitable for industrial environments. The module is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).



This converter is ideal for distributed power architectures, telecommunications, and embedded systems requiring a stable isolated 5V supply. Its through-hole mounting and standard DIP package simplify integration into existing designs.

JCK1548S05 Quick Information

Product Type: DC DC Converter
Canonical Name: XP Power JCK1548S05 Isolated DC/DC Converter, 5V Output, 15W
Subcategory: DC DC Converters

JCK1548S05 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JCK1548S05 Estimated Pricing

Qty Low High
10+ $32.17 $32.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

JCK1548S05 Features

  • 85% typical efficiency for reliable operation.
  • Provides overcurrent, short-circuit, and UVLO protection.
  • Through-hole 5-DIP package for easy mounting.
  • Wide operating temperature range of -40°C to 100°C.
  • Isolated module with 5V output at 3A.

JCK1548S05 Applications

  • For use in commercial ITE equipment.
  • In distributed power supply designs.
  • In embedded systems requiring isolated power.
  • Ideal for telecommunications and networking gear.

JCK1548S05 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage of the JCK1548S05?

The nominal input voltage is 36V.

What is the output voltage of the JCK1548S05?

5V.

What is the output current?

3A.

What is the efficiency of the JCK1548S05?

85% typical.

What is the package type of the JCK1548S05?

It is a 5-DIP through-hole module.

What is the operating temperature range?

-40°C to +100°C.

Is the JCK1548S05 RoHS compliant?

Yes, it is RoHS3 compliant.
