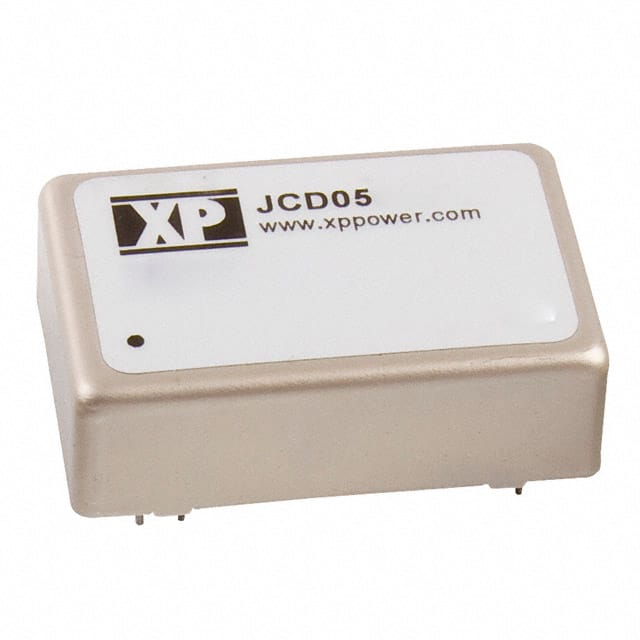

The XP Power JCD0524S24 is an isolated DC-DC converter module from the JCD series. It delivers a regulated 24V output at 208mA (5W) from a 2:1 input voltage range of 18-36V (nominal 24V). The converter features 1600VDC input-to-output isolation, ensuring safe operation in commercial ITE applications. With a typical efficiency of 84% and a switching frequency of 266kHz, it offers reliable performance with low ripple and noise of 60mV pk-pk. Line and load regulation are both ±0.5%, providing stable output under varying conditions.
The module is housed in a 24-DIP through-hole package measuring 31.8mm x 20.3mm x 10.4mm. It operates over a wide temperature range of -40°C to +100°C and includes protection features such as overcurrent (OCP), overvoltage (OVP), and short-circuit (SCP) protection. The converter requires no minimum load and has a start-up delay of 500ms typical for 24V input models. It is designed for board-mounted power applications in commercial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.88 | $21.88 |
| 3+ | $31.52 | $31.52 |
| 5+ | $21.22 | $21.22 |
| 10+ | $20.57 | $20.57 |
| 12+ | $30.27 | $30.27 |
| 25+ | $19.69 | $19.69 |
| 51+ | $29.05 | $29.05 |
| 100+ | $18.38 | $18.38 |
| 132+ | $27.89 | $27.89 |
| 402+ | $26.78 | $26.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output is 24V at 208mA, providing 5W of power.
The input voltage range is 18-36V with a nominal of 24V.
The isolation voltage is 1600VDC from input to output.
The operating temperature range is -40°C to 100°C.
It comes in a 24-DIP Module with 7 leads, through-hole mounting.
It is listed as RoHS3 compliant, but this is unverified.
It includes overcurrent (OCP), overvoltage (OVP), and short-circuit (SCP) protection.
