JCD0424S24

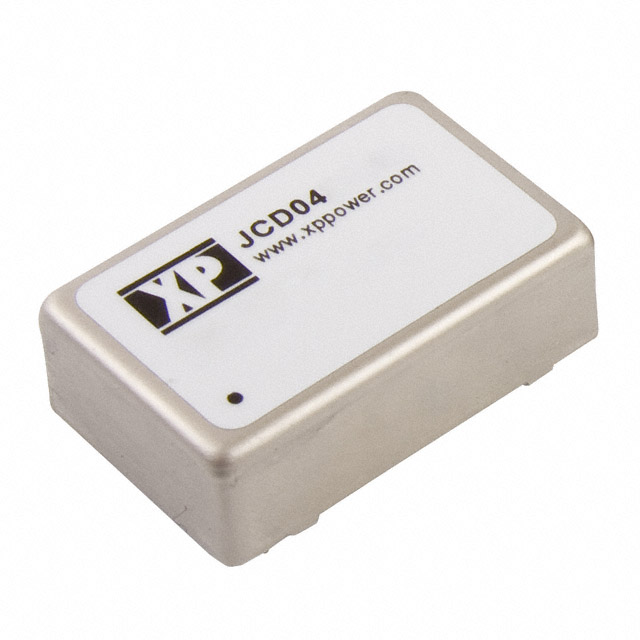

The XP Power JCD0424S24 is a fully isolated DC-DC converter module from the JCD series, offering a regulated 24V output at 166mA with a total power of 4W. It accepts a wide 2:1 input voltage range of 18V to 36V, making it suitable for systems with a nominal 24V bus. The module provides 1600VDC input-to-output isolation, ensuring safe operation in commercial and industrial applications. Key electrical features include a typical efficiency of 83%, line and load regulation of ±0.5%, low ripple and noise of 60mV pk-pk, and a switching frequency of 266kHz. Protection features include indefinite short circuit protection with auto recovery, overcurrent protection (OCP), and overvoltage protection (OVP). The converter requires no minimum load and operates reliably over a temperature range of -40°C to +100°C with convection cooling. The JCD0424S24 is housed in a 24-DIP through-hole module with 7 leads, measuring 31.8mm x 20.3mm x 10.4mm. It is designed for commercial ITE (Information Technology Equipment) applications and complies with safety standards UL60950-1, UL62368-1, and CE requirements.
