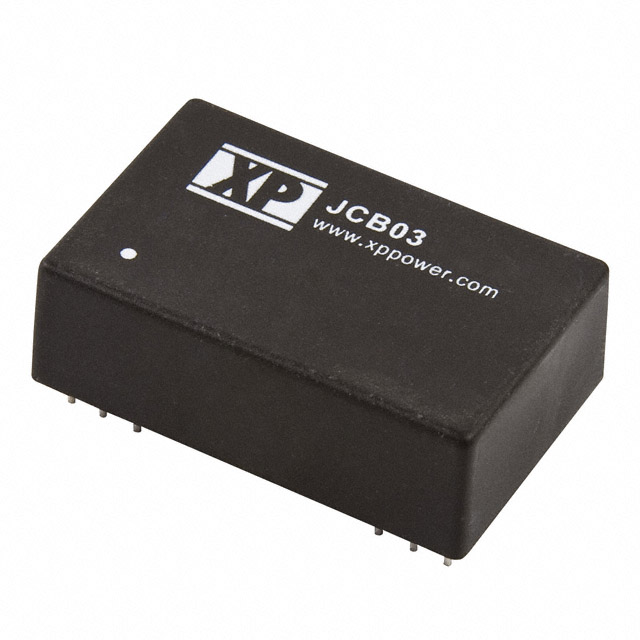

JCB0305D09 The JCB0305D09 from XP Power is a 3W isolated DC DC converter providing dual +/-9V outputs with 167mA per output. It features through hole mounting in a 24-DIP module.
Mfr Part #:

JCB0305D09

Available from 1 distributors
Mfr Name: XP Power
XP Power
The JCB0305D09 from XP Power is a 3W isolated DC DC converter providing dual +/-9V outputs with 167mA per output. It features through hole mounting in a 24-DIP module.
✓ Total Stock: 7 pcs
$ Price Range: $13.67

JCB0305D09 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JCB0305D09 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

JCB0305D09 Description

Short technical summary and product information.

The JCB0305D09 is an isolated DC DC converter module manufactured by XP Power. It delivers a 3W output with dual positive and negative 9V rails, each capable of supplying 167mA. The module operates with a typical efficiency of 70% and includes built-in protection features including overcurrent protection (OCP), overvoltage protection (OVP), short circuit protection (SCP), and under-voltage lockout (UVLO).



This converter is housed in a 24-DIP module with 14 leads and is designed for through hole mounting. The compact package measures 31.8mm x 20.3mm x 10.2mm and supports an operating temperature range from -40°C to 100°C. It is suitable for commercial ITE (Information Technology Equipment) applications.

JCB0305D09 Quick Information

Product Type: DC DC Converter
Series: JCB
Canonical Name: Isolated DC DC Converter +/-9V Output 3W
Subcategory: Isolated Module

JCB0305D09 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected

JCB0305D09 Estimated Pricing

Qty Low High
10+ $13.67 $13.67

Estimated market price range - modelled values for guidance only, not live distributor offers.

JCB0305D09 Features

  • Isolated DC DC converter module.
  • Dual +/-9V output at 167mA.
  • 3W output power with 70% efficiency.
  • Through hole 24-DIP package.
  • Built-in OCP, OVP, SCP, UVLO protection.

JCB0305D09 Applications

  • Designed for commercial ITE applications.
  • Suitable for dual-rail power distribution.
  • Used in board-level power architectures.

JCB0305D09 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the JCB0305D09?

The JCB0305D09 is housed in a 24-DIP Module with 14 leads for through hole mounting.

What is the operating temperature range?

The operating temperature range is -40°C to 100°C.

Is the JCB0305D09 RoHS compliant?

Yes, it is RoHS3 compliant.

How many outputs does this converter have?

It has two outputs providing +9V and -9V.

What is the output current per output?

Each output can deliver 167mA.

What protection features are included?

It includes OCP, OVP, SCP, and UVLO.
