| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | 741 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

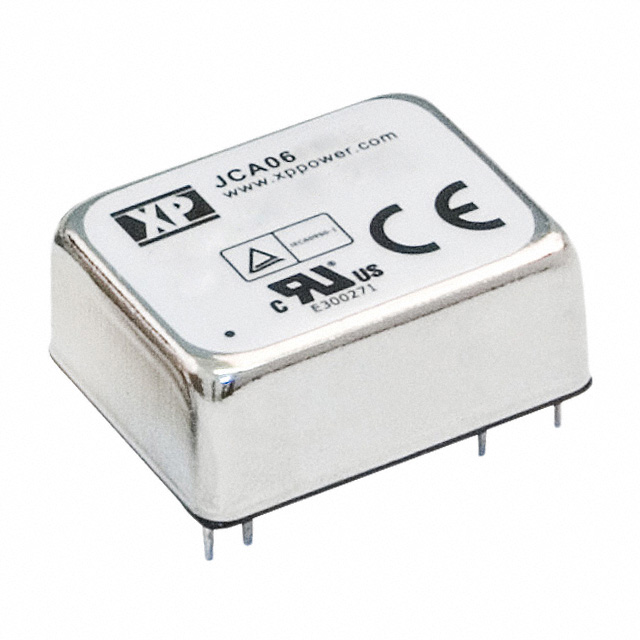

The XP Power JCA0605S15 is a high-performance isolated DC-DC converter module designed for commercial ITE applications. It accepts a nominal 5V input voltage and delivers a regulated 15V output at up to 400mA, providing 6W of output power.
This converter features a 2:1 input voltage range (4.5V to 9V) and offers robust protection features including overcurrent protection (OCP), overvoltage protection (OVP), short-circuit protection (SCP), and under-voltage lockout (UVLO). With an efficiency of 84%, it minimizes power loss in space-constrained designs.
The JCA0605S15 is housed in a compact 24-DIP module with 7 leads, measuring 25.4mm x 20.3mm x 10.0mm, and is designed for through-hole mounting. It operates over a wide temperature range of -40°C to 100°C, making it suitable for demanding environments. The module complies with safety standard 62368-1.
| Qty | Low | High |
|---|---|---|
| 1+ | $41.35 | $41.35 |
| 5+ | $40.11 | $40.11 |
| 10+ | $38.87 | $38.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 15V nominal with a nominal output current of 400mA.
The input voltage range is 4.5V minimum to 9V maximum, with a nominal input of 5V.
The operating temperature range is -40°C to 100°C.
It comes in a 24-DIP Module with 7 leads, through-hole mounting.
The part is marked as RoHS3 Compliant, though this is unverified.
It includes overcurrent protection (OCP), overvoltage protection (OVP), short-circuit protection (SCP), and under-voltage lockout (UVLO).
The efficiency is 84%.
