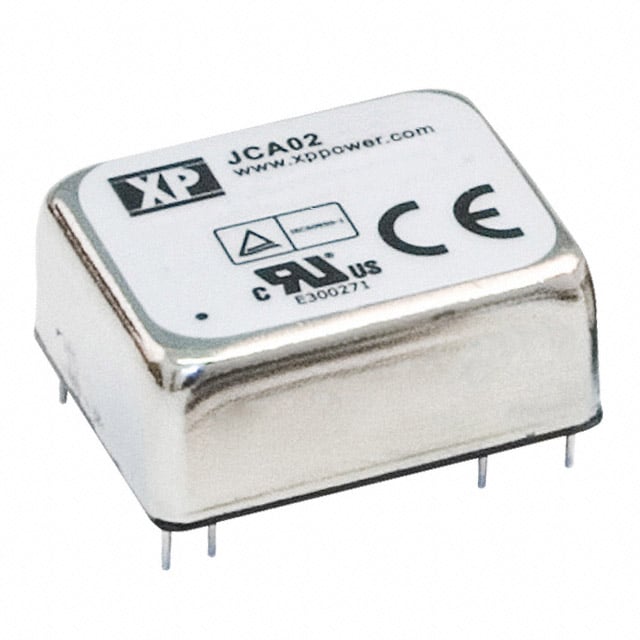

JCA0205S12 The XP Power JCA0205S12 is an isolated DC-DC converter module delivering a regulated 12V output at up to 170mA (2W). It features a 4.5V minimum input voltage and is housed in a through-hole 24-DIP package.
Mfr Part #:

JCA0205S12

Available from 1 distributors
Mfr Name: XP Power
XP Power
The XP Power JCA0205S12 is an isolated DC-DC converter module delivering a regulated 12V output at up to 170mA (2W). It features a 4.5V minimum input voltage and is housed in a through-hole 24-DIP package.
✓ Total Stock: 11 pcs
$ Price Range: $20.87

JCA0205S12 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request 727 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JCA0205S12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Standard Number
Type
Voltage
Width
View Similar Products (0)

JCA0205S12 Description

Short technical summary and product information.

The XP Power JCA0205S12 is a 2W isolated DC-DC converter module designed for commercial ITE applications. It provides a single regulated 12V output with a maximum output current of 170mA. The module accepts a minimum input voltage of 4.5V and offers a typical efficiency of 74%.



This converter includes comprehensive protection features such as overcurrent protection (OCP), overvoltage protection (OVP), short-circuit protection (SCP), and under-voltage lockout (UVLO). It is designed for through-hole mounting in a compact 24-DIP Module, 7 Leads package measuring 25.4mm x 20.3mm x 10.0mm.



The JCA0205S12 operates over a wide temperature range of -40°C to 100°C, making it suitable for demanding environments. It is compliant with safety standard 62368-1.

JCA0205S12 Quick Information

Product Type: Isolated DC-DC Converter
Series: JCA02
Canonical Name: XP Power JCA0205S12 Isolated DC-DC Converter
Subcategory: Board Mount Power Supplies

JCA0205S12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

JCA0205S12 Estimated Pricing

Qty Low High
16+ $20.87 $20.87

Estimated market price range - modelled values for guidance only, not live distributor offers.

JCA0205S12 Features

  • Single 12V output at 170mA maximum current.
  • 2W isolated DC-DC converter module.
  • Through-hole 24-DIP package for mounting.
  • Wide operating temperature range -40°C to 100°C.
  • Includes OCP, OVP, SCP, and UVLO protection.

JCA0205S12 Applications

  • Suitable for commercial ITE (Information Technology Equipment).
  • Ideal for powering isolated 12V rail circuits.
  • Used in industrial control and automation systems.

JCA0205S12 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the JCA0205S12?

The JCA0205S12 provides a single 12V output.

What is the maximum output current?

The maximum output current is 170mA.

What is the power rating of this converter?

The JCA0205S12 is rated for 2W output power.

What is the operating temperature range?

The operating temperature range is -40°C to 100°C.

What package type does the JCA0205S12 use?

It uses a through-hole 24-DIP Module with 7 leads.

What protection features does this converter include?

It includes overcurrent (OCP), overvoltage (OVP), short-circuit (SCP), and under-voltage lockout (UVLO) protection.

What is the typical efficiency of the JCA0205S12?

The typical efficiency is 74%.
