| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature (Maximum @ Maximum) | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Voltage Rating |

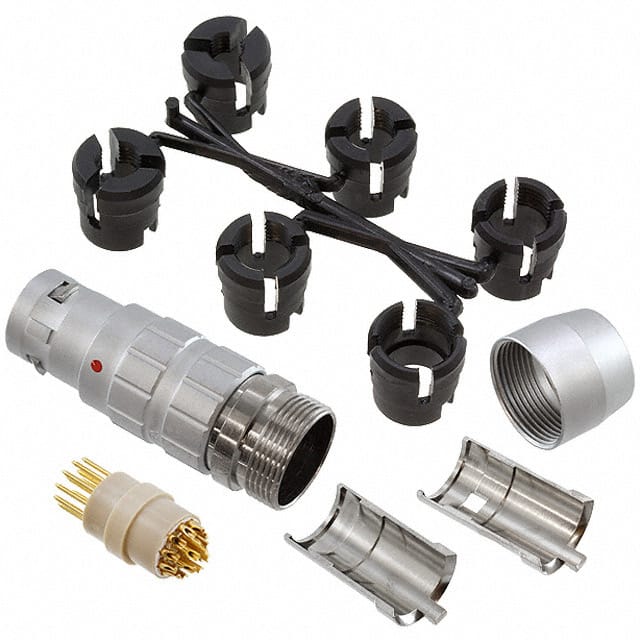

The JBXFD2G16MSSDSR is a circular connector plug from Souriau-Sunbank by Eaton. It has 16 male pin positions with gold plated contacts, terminated via solder cup. The connector features a brass shell with chrome over nickel finish, providing a silver appearance and shielding against electromagnetic interference. It uses a push-pull fastening mechanism and is designed for free hanging (in-line) mounting, with orientation G.
Electrically, the connector is rated for 6A per contact and 730V, suitable for moderate power and signal applications in industrial environments. It is IP40 rated, offering protection against solid objects larger than 1 mm. The operating temperature range covers -40°C to 125°C, and the insulator material meets UL94 V-0 flammability rating. A backshell is included as a standard feature.
This connector is typically used in applications requiring a robust, shielded circular interface. The solder cup termination allows for custom cable assembly with appropriate wire gauges. The push-pull locking ensures secure mating while allowing quick disconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $72.48 | $72.48 |
| 10+ | $61.61 | $61.61 |
| 25+ | $57.76 | $57.76 |
| 50+ | $55.00 | $55.00 |
| 100+ | $52.38 | $52.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 16 positions.
The connector is rated for 6 A per contact.
The connector is rated for 730 V.
The mounting type is Free Hanging (In-Line).
The termination method is Solder Cup.
The operating temperature range is -40°C to 125°C.
The connector has an IP40 rating.
