| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

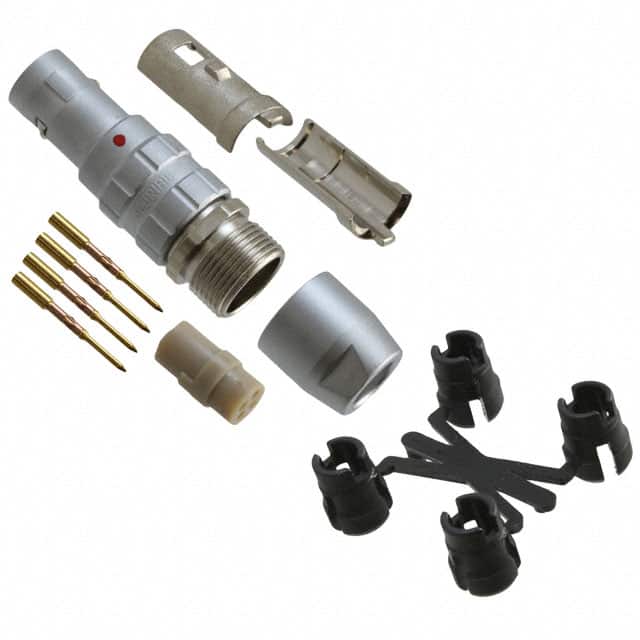

The JBXFD0G04MCSDSR is a circular connector plug manufactured by Souriau-Sunbank by Eaton, part of the JBX series. It features 4 male pin contacts in a free hanging (in-line) mounting configuration, terminated via crimp. The connector is shielded and has a push-pull fastening type. The metal shell is made of brass with a chrome over nickel finish, and contacts are gold plated. The operating temperature range is -40°C to 125°C. It is rated for 7A current and 660V voltage. The ingress protection rating is IP40, and the material flammability rating is UL94 V-0. The orientation is G and a backshell is included.
| Qty | Low | High |
|---|---|---|
| 1+ | $45.36 | $45.36 |
| 10+ | $38.55 | $38.55 |
| 25+ | $36.14 | $36.14 |
| 50+ | $34.41 | $34.41 |
| 100+ | $32.77 | $32.77 |
| 250+ | $30.72 | $30.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Plug, Male Pins
4 positions
Free Hanging (In-Line)
Crimp
7A current rating, 660V voltage rating
-40°C to 125°C
Yes, the connector is shielded.
