| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Voltage Rating |

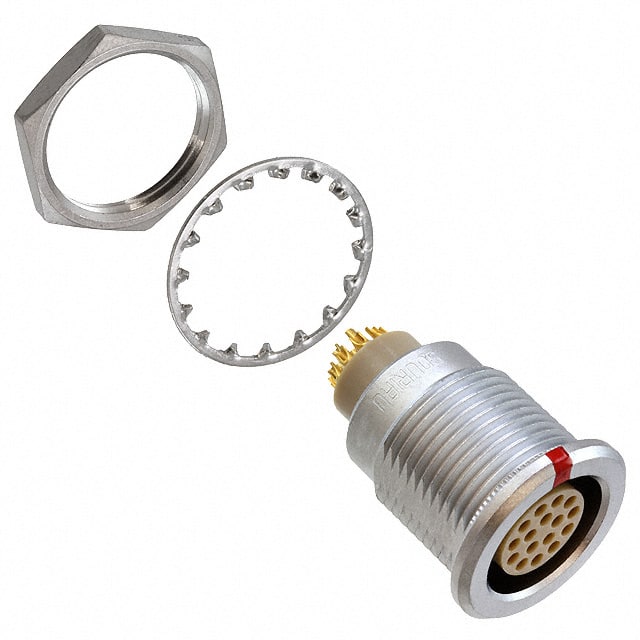

The JBXER2G16FSSDSR is a circular connector receptacle manufactured by Souriau-Sunbank by Eaton. It is designed for panel mount applications using a bulkhead rear side nut mounting feature. The connector has 16 positions arranged in a shell size 2 configuration with a G orientation keying.
This receptacle features female socket contacts with a gold finish for reliable signal integrity. The termination style is solder cup, suitable for secure wire connections. The connector body is constructed from a brass shell with a chrome over nickel finish, giving it a silver appearance. It is shielded for electromagnetic interference protection.
The connector is rated for 6 A per contact and 730 V, with an operating temperature range of -40°C to 125°C. It has an IP40 ingress protection rating and uses a push-pull fastening mechanism for secure mating. The insulator material has a UL94 V-0 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $61.27 | $61.27 |
| 10+ | $52.08 | $52.08 |
| 25+ | $48.82 | $48.82 |
| 50+ | $46.49 | $46.49 |
| 100+ | $44.28 | $44.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a receptacle with female sockets.
It has 16 positions.
It is panel mounted using a bulkhead rear side nut.
It is rated for 6 A.
It is rated for 730 V.
It operates from -40°C to 125°C.
The contacts have a gold finish.
