| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
73 pcs
|
73 pcs | On Request | 1 | On Request | On Request | 9811 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Power Dissipation (Max) | |
| Supplier Device Package | |
| Tolerance |

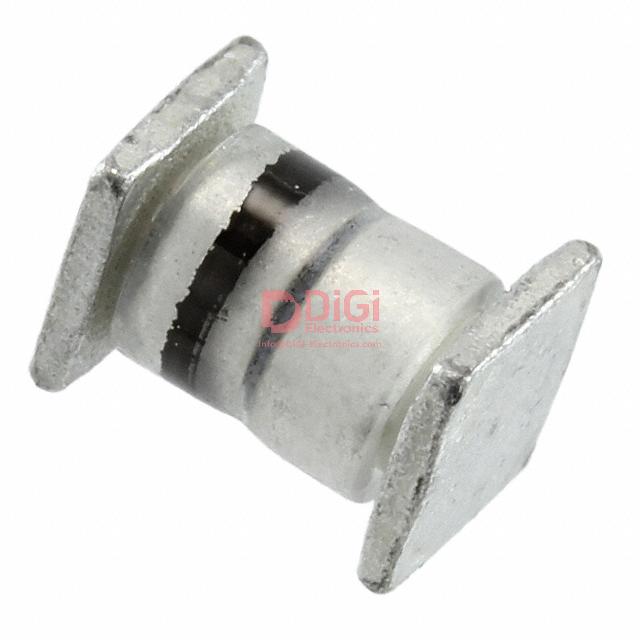

The JANTXV1N963B-1 is a Zener Diode manufactured by Microsemi Corporation. It offers a nominal Zener voltage of 160V with a tight tolerance of ±2%. This diode has a maximum power dissipation of 5W and a maximum forward voltage of 1.5V at 1A.
Designed for reliability, it operates within a temperature range of -65°C to 175°C and meets military qualification standards (MIL-PRF-19500/435). The component is suitable for surface mount applications and comes in a SQ-MELF, E package, with the supplier device package identified as D-5B.
Key electrical characteristics include a maximum impedance (Zzt) of 350 Ohms and a reverse leakage current of 2 µA at 121.6V. Its robust construction and specifications make it suitable for demanding electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 160 V.
The maximum power dissipation is 5 W.
The operating temperature range is -65°C to 175°C.
It is a surface mount component in a SQ-MELF, E package.
Yes, it has a military qualification grade and meets MIL-PRF-19500/435.
