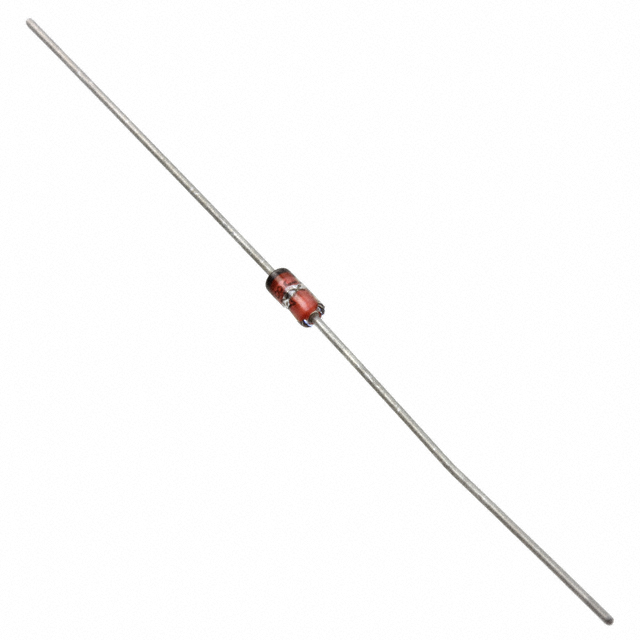

JANTXV1N823-1 The Microsemi Corporation JANTXV1N823-1/TR is a temperature-compensated Zener diode with a nominal voltage of 6.2V and ±5% tolerance. It is supplied in a through-hole DO-35 package.
Mfr Part #:

JANTXV1N823-1

Available from 1 distributors
Mfr Name: Microsemi Corporation
Microsemi Corporation
The Microsemi Corporation JANTXV1N823-1/TR is a temperature-compensated Zener diode with a nominal voltage of 6.2V and ±5% tolerance. It is supplied in a through-hole DO-35 package.
✓ Total Stock: 350 pcs
$ Price Range: $0.99

JANTXV1N823-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
350 pcs
On Request
350 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JANTXV1N823-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Military Grade
Mounting Type
SVHC Present
Supplier Device Package
Tolerance
View Similar Products (0)

JANTXV1N823-1 Description

Short technical summary and product information.

The Microsemi Corporation JANTXV1N823-1/TR is a single Zener diode designed for temperature-compensated applications. It features a nominal Zener voltage of 6.2V with a tight tolerance of ±5%. The diode can handle a maximum power dissipation of 500 mW and has a maximum dynamic impedance of 15 Ohms.



This component is suitable for through-hole mounting and comes in a standard DO-35 (DO-204AH) axial package, supplied on tape and reel (TR). The reverse leakage current is rated at 2 µA at 3V.



This Zener diode is part of the JANTXV series, indicating compliance with military standards. Its specifications make it suitable for voltage regulation and reference applications where stability over temperature is critical.

JANTXV1N823-1 Quick Information

Product Type: Zener Diode
Series: JANTXV
Canonical Name: Microsemi Corporation JANTXV1N823-1/TR Zener Diode
Subcategory: Zener Diode

JANTXV1N823-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JANTXV1N823-1 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

JANTXV1N823-1 Features

  • Nominal Zener voltage of 6.2V.
  • Tight tolerance of ±5%.
  • Maximum power dissipation of 500mW.
  • Through-hole mounting, DO-35 package.
  • Temperature-compensated design.

JANTXV1N823-1 Applications

  • Voltage regulation circuits.
  • Voltage reference applications.
  • Temperature-sensitive designs.
  • Military and industrial applications.

JANTXV1N823-1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the nominal Zener voltage of the JANTXV1N823-1?

The nominal Zener voltage is 6.2V.

What is the voltage tolerance of the JANTXV1N823-1?

±5%.

What is the maximum power dissipation of the JANTXV1N823-1?

500mW.

What is the maximum dynamic impedance of the JANTXV1N823-1?

15 Ohms.

What is the reverse leakage current of the JANTXV1N823-1?

2 µA at 3V reverse voltage.

What is the package type of the JANTXV1N823-1?

The device is available in a DO-35 (DO-204AH) axial leaded through-hole package.
