| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Reverse Voltage |

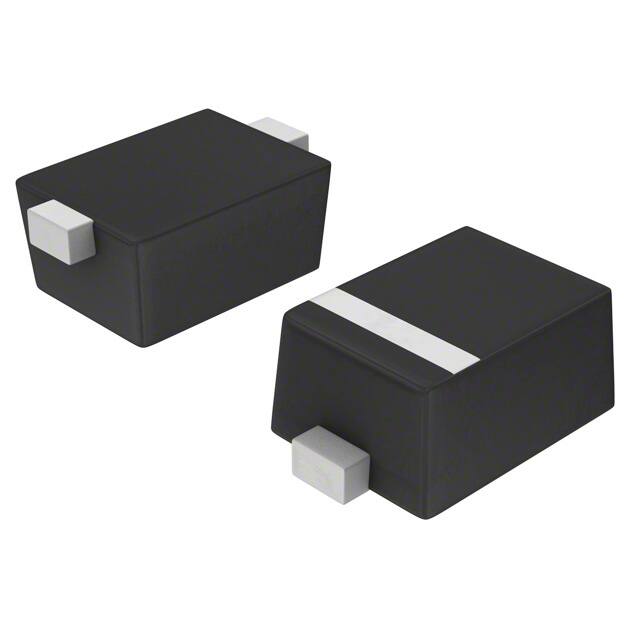

The Infineon BA892H6770XTSA1 is a single-element silicon PIN diode packaged in an SC-80 surface-mount case. This component is designed for RF applications and operates at a maximum reverse voltage of 35V.
Key electrical characteristics include a typical capacitance of 1.1pF at 3V and 1MHz. The diode can withstand operating temperatures up to 150°C junction temperature. It is supplied in tape and reel packaging.
Applications for this PIN diode include clamping circuits, diode ring mixers, RF detectors, RF voltage doublers, RF attenuators and switches, and receiver protectors. It is suitable for use in wearables, smart metering, and set-top boxes.
This part is available for RFQ, with quote response typically within 24 hours. In-stock parts ship in 1-2 business days.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum reverse voltage for the BA892H6770XTSA1 is 35V.
The operating temperature for the BA892H6770XTSA1 is up to 150°C junction temperature.
The typical capacitance is 1.1pF at 3V and 1MHz.
The BA892H6770XTSA1 is supplied in an SC-80 surface mount package, on tape and reel.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
