| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Halogen Free | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Storage Temperature | |
| Technology | |
| Voltage |
The JANTXV1N6642 is a JEDEC-registered fast recovery switching diode from Microchip Technology, qualified per MIL-PRF-19500/578. It is designed for high-reliability applications requiring very fast switching speeds and low capacitance.
Key electrical specifications include a minimum breakdown voltage of 100V, an average rectified forward current of 300mA at +75°C, and a maximum forward voltage of 1.2V at 100mA. The device offers a fast reverse recovery time of 20ns, making it suitable for high-frequency switching circuits.

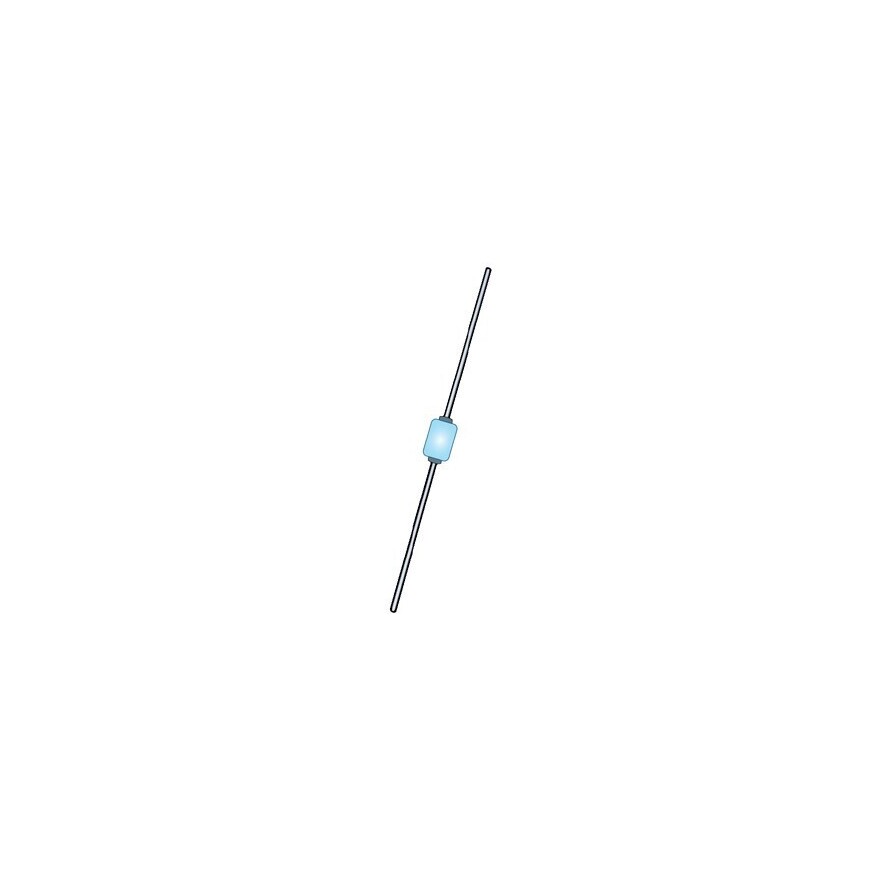

The diode is hermetically sealed in a non-cavity glass "D" package with flexible thru-hole leads for through-hole mounting. It operates over a junction temperature range of -65°C to +175°C and has a thermal resistance of 150°C/W junction-to-lead. This part is a direct replacement for 1N4148, 1N4148-1, 1N4150, 1N4150-1, and 1N914 diodes.
| Qty | Low | High |
|---|---|---|
| 136+ | $11.90 | $11.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse recovery time is 20 ns.
The maximum forward voltage is 1.2 V at a forward current of 100 mA.
The average rectified forward current is 300 mA at an ambient temperature of +75 °C.
The minimum breakdown voltage is 100 V.
It uses an Axial through-hole package with flexible thru-hole leads.
The junction operating temperature range is -65°C to 175°C.
RoHS compliant devices are available for commercial grade versions per the datasheet, but the RoHS status for this specific part number is unverified.
