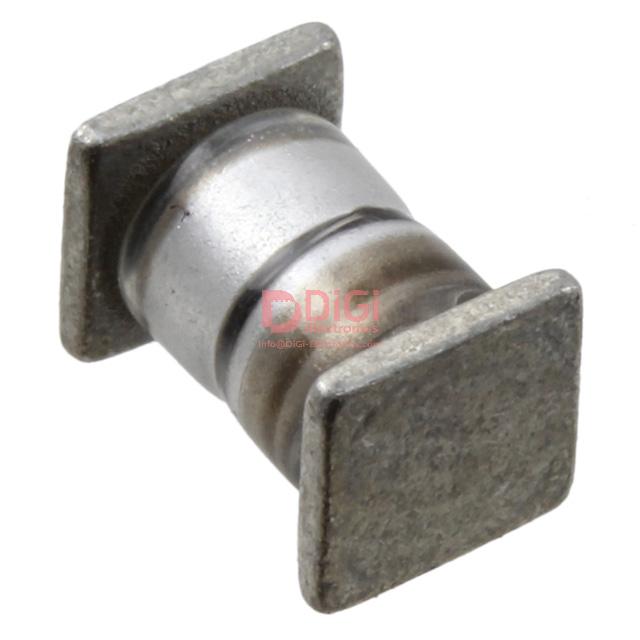

JANTXV1N6321DUS The Microsemi Corporation JANTXV1N6321DUS is a Zener diode with a nominal voltage of 7.5V and a power rating of 500mW. It features a ±1% tolerance and is available in a surface mount package.
Mfr Part #:

JANTXV1N6321DUS

Available from 1 distributors
Mfr Name: Microsemi Corporation
Microsemi Corporation
The Microsemi Corporation JANTXV1N6321DUS is a Zener diode with a nominal voltage of 7.5V and a power rating of 500mW. It features a ±1% tolerance and is available in a surface mount package.
✓ Total Stock: 40 pcs
$ Price Range: $0.99

JANTXV1N6321DUS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JANTXV1N6321DUS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Grade
Military Grade
Mounting Type
Operating Temperature
Supplier Device Package
Tolerance
View Similar Products (0)

JANTXV1N6321DUS Description

Short technical summary and product information.

The JANTXV1N6321DUS from Microsemi Corporation is a Zener diode designed for voltage regulation applications. It offers a nominal Zener voltage of 7.5V with a tight tolerance of ±1%. The diode has a maximum power dissipation of 500mW and a low reverse leakage current of 2µA at 5V.



This component is qualified to MIL-PRF-19500/533 standards and operates across a wide temperature range of -65°C to 175°C. It is suitable for military-grade applications.



The JANTXV1N6321DUS is available in a surface mount package, specifically the SQ-MELF, B type, making it convenient for automated assembly processes. Its active status indicates it is currently in production and available for new designs.

JANTXV1N6321DUS Quick Information

Product Type: Zener Diode
Series: JANTXV
Canonical Name: JANTXV1N6321DUS Zener Diode
Subcategory: Zener Diode

JANTXV1N6321DUS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JANTXV1N6321DUS Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

JANTXV1N6321DUS Features

  • 7.5V nominal Zener voltage rating.
  • 500mW maximum power dissipation.
  • ±1% voltage tolerance for precise regulation.
  • Wide operating temperature range: -65°C to 175°C.
  • Military qualification: MIL-PRF-19500/533.

JANTXV1N6321DUS Applications

  • Used in military voltage regulation circuits.
  • Suitable for precision reference applications.
  • Ideal for surge protection in power supplies.
  • Applied in high-reliability aerospace systems.

JANTXV1N6321DUS FAQs

7 frequently asked questions generated from this part’s specifications.
What is the nominal Zener voltage of the JANTXV1N6321DUS?

The nominal Zener voltage is 7.5V.

What is the voltage tolerance of this Zener diode?

The voltage tolerance is ±1%.

What is the maximum power dissipation?

Maximum power dissipation is 500mW.

What is the maximum forward voltage at 1A?

Maximum forward voltage is 1.4V at 1A.

What is the maximum reverse leakage current at 5V?

Maximum reverse leakage current is 2µA at 5V.

What is the operating temperature range?

Operating temperature range is -65°C to 175°C (junction).

What package is the JANTXV1N6321DUS available in?

It is available in a surface-mount SQ-MELF (B) package.
