| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature | |
| SVHC Present | |
| Tolerance |
The Microsemi JANTXV1N4971 is a military-qualified Zener Voltage Regulator series, designed for high-reliability applications where failure is not an option. This component offers a nominal Zener voltage of 36V and a power dissipation rating of 5W.
It features a typical forward voltage of 1.5V at 1A and a test current of 30mA. The operating temperature range spans from -65°C to 175°C, ensuring performance in demanding environments. The diode has a tolerance of ±5% and is constructed with voidless-glass and an internal metallurgical bond for hermetic sealing.
The JANTXV1N4971 is available in an E, Axial package and is designed for through-hole mounting. This series is military qualified to MIL-PRF-19500/356, making it suitable for critical applications. Microsemi also offers other Zener products for various power ratings and package types.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36V nominal.
5W.
1.5V at 1A.
±5%.
-65°C to 175°C.

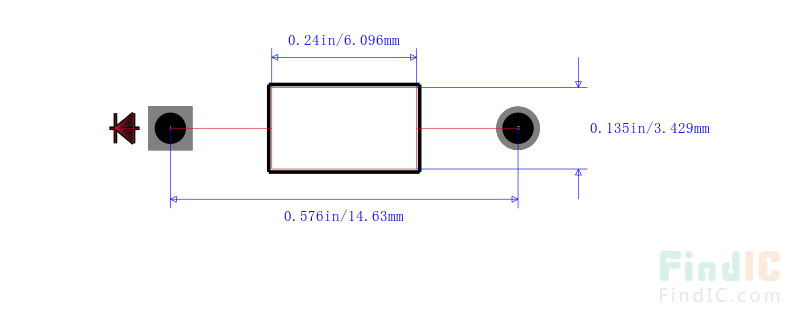

E Axial, through-hole, 2 pins.
30mA.
