| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Supplier Device Package |

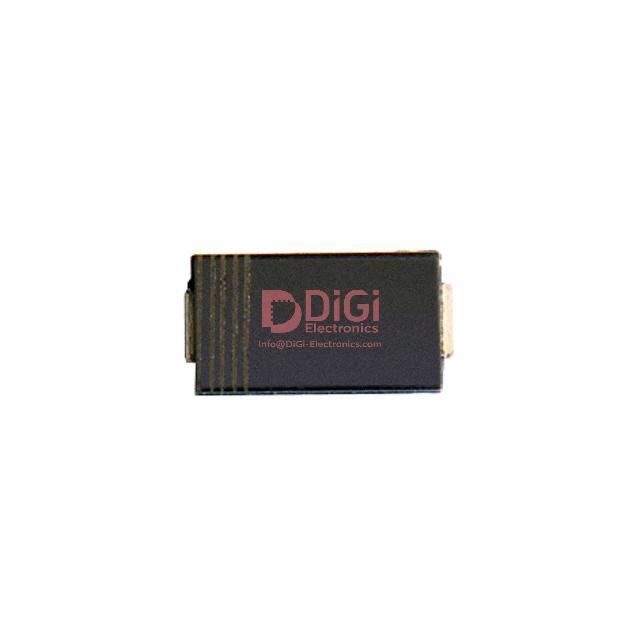

This Zener Diode from Microsemi Corporation, part number JANTXV1N4617DUR-1, is designed for various electronic applications requiring stable voltage regulation. It operates with a nominal Zener voltage of 4.7V and offers a tight tolerance of ±5%, ensuring precise voltage control.
The diode has a maximum power dissipation of 1.5W and a low reverse leakage current of 4 µA at 1V. Its forward voltage is a maximum of 1.2V at 200 mA. The impedance at the Zener test current is a maximum of 8 Ohms.
Designed for surface mounting, the JANTXV1N4617DUR-1 comes in a DO-214AC (SMAJ) package, making it suitable for compact PCB designs. The operating temperature range is from -55°C to 150°C, providing reliability in diverse environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 4.7 V.
The maximum power dissipation is 1.5 W.
The tolerance is ±5%.
It is a DO-214AC (SMAJ) surface mount package.
The operating temperature range is -55°C to 150°C.
